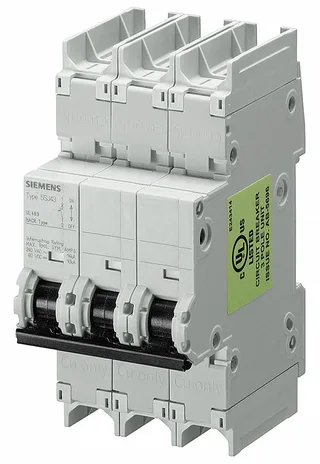

Siemens SENTRON 5SJ4330-8HG41 miniature circuit breaker, 3-pole, D-curve, 30 A at 400 V AC, 70 mm depth.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Suitability for operation | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | D |
| Breaking capacity per EN 60898 | 10 kA |
| Breaking capacity per IEC 60947-2 | 15 kA |
| Overvoltage category | 3 |
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Voltage type (AC/DC) | AC/DC |
| Supply frequency range | 50/60 Hz |
| Power loss per pole at rated current (AC, hot) | 3.2 W |
| Mechanical service life (operating cycles, typ.) | 10 000 |
| Neutral conductor switching | No |
| Parameter | Value |
|---|---|
| Modular width units | 3 |
| Mounting position | any |
| Width | 54 mm |
| Height | 110 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Fastening method | on standard mounting rail |
| Sealable | Yes |
| Accepts supplementary devices | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Vibration resistance (IEC 60068-2-6) | ±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz |
The 5SJ4330-8HG41: Rated current holds at 30 A up to 40 °C ambient; derates to 27 A at 60 °C. Operating range spans -40 to 75 °C, so it handles both cold storage and hot panel environments. Sealable and halogen-free, suitable for controlled environments where outgassing matters.
Three modular width units (54 mm width) snap onto standard mounting rail; any mounting position accepted. Combined terminals top and bottom simplify wiring.
Depth 70 mm, width 54 mm, height 110 mm.
Yes, it mounts on a standard mounting rail (DIN rail) and can be oriented in any position.
