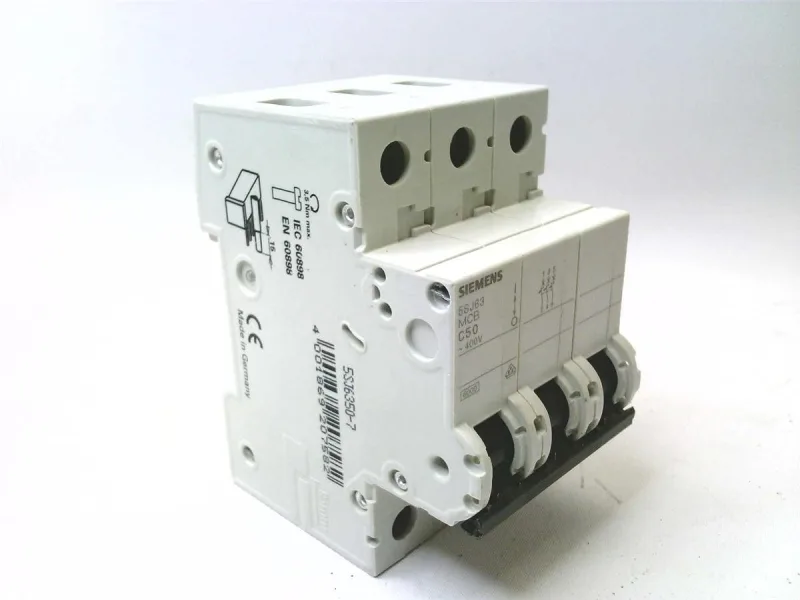

Siemens 5SJ6350-7 — 3-Pole MCB (DIN Rail)

Siemens 5SJ6350-7 SENTRON MCB, 3-pole C 50A 6kA

MPN5SJ6350-7

Siemens SENTRON 5SJ6, miniature circuit breaker, 3-pole, C-curve, 50 A, 6 kA, 400 V AC, IP20.

$104.67Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SJ6350-7 — Identification
ParameterValue
Design / model code5SJ6
Brand nameSENTRON
Number of poles3
5SJ6350-7 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 608986 kA
Breaking capacity per IEC 60947-26 kA
Overvoltage category3
IP protection classIP20, with connected conductors
5SJ6350-7 — Electrical
ParameterValue
Rated frequency50 Hz
5SJ6350-7 — Mechanical
ParameterValue
Mounting positionany
Installation depth70 mm
Terminal tightening torque, max.2.5 mm²
Terminal tightening torque, min.1.5 mm²
SealableYes
5SJ6350-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturePeriodically +55°C, max. 95% humidity

Product details

The Siemens 5SJ6350-7 is a 3-pole miniature circuit breaker from the SENTRON 5SJ6 series, rated 50 A at 400 V AC with a C tripping characteristic. The C-curve means it holds through motor inrush (5–10× rated current) and trips on sustained overloads, so it's the usual pick for general-purpose loads like pumps, compressors, and lighting banks fed from a 400 V three-phase supply.

Three width units (3 x 18 mm = 54 mm) on the DIN rail — standard footprint for a 3-pole 5SJ6. Terminals accept 1.5 mm² to 2.5 mm² solid or stranded copper, which is fine for the 50 A rating if you keep the conductor length short and the ambient under 40 °C.

Frequently asked questions

Where can I buy 5SJ6350-7 and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit a request for quote (RFQ) and we'll confirm availability and current pricing at that time.

What is the closest functional second-source to 5SJ6350-7?

The closest sibling is the 4-pole 5SJ6463-7 (63 A, same C-curve, same 6 kA breaking capacity). It shares the same 70 mm depth, terminal range, and mechanical endurance. The 5SJ6350-7 will not drop into a panel wired for the 4-pole unit without adding a pole and re-terminating the neutral — the footprint and wiring differ by one pole.

What is 5SJ6350-7's listed maximum and minimum wire size?

The terminals accept a maximum of 2.5 mm² and a minimum of 1.5 mm² solid or stranded copper.

What compliance documentation does Siemens provide for 5SJ6350-7?

The part carries halogen-free and silicon-free construction. The evidence does not list specific RoHS, REACH, UL, or IEC certificates — these are typically available from Siemens on request for the SENTRON series.
