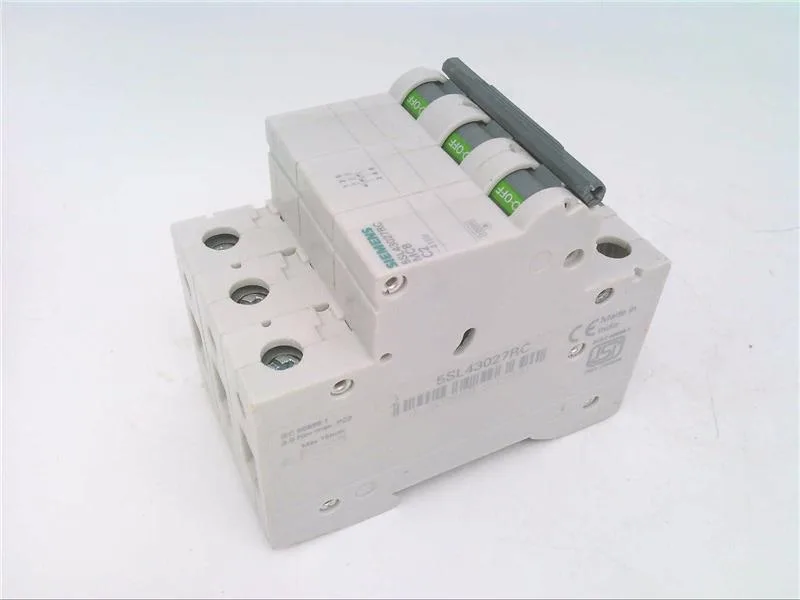

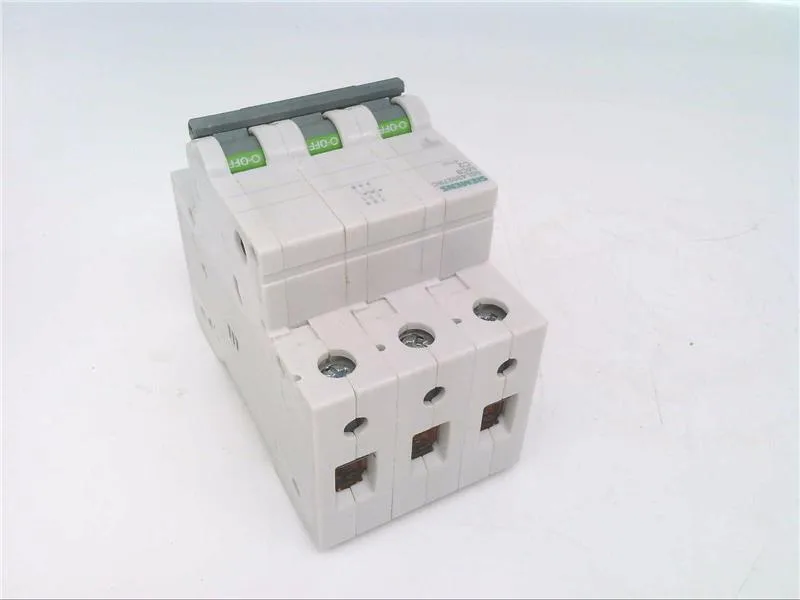

Siemens 5SL4302-7RC — 3-Pole MCB (DIN Rail)

Siemens 5SL4302-7RC SENTRON MCB, 3P C 2A 10kA 415V

MPN5SL4302-7RC
Active

Siemens SENTRON 5SL4302-7RC, 3-pole miniature circuit breaker, C-curve, 2 A, 10 kA at 415 V AC, 1 MW width.

$115.07Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SL4302-7RC — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationResidential buildings/infrastructure
5SL4302-7RC — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 6089810 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Energy limitation class3
Pollution degree2
5SL4302-7RC — Electrical
ParameterValue
Rated voltage (AC, multi-phase)440 V
Voltage type (AC/DC)AC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)1.25 W
Mechanical service life (operating cycles, typ.)10 000
Rated voltage (AC, single-phase)250 V
5SL4302-7RC — Mechanical
ParameterValue
Modular width units1
Mounting positionany
Width18 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
SealableYes
Accepts supplementary devicesYes
5SL4302-7RC — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Vibration resistance (IEC 60068-2-6)no

Product details

The Siemens SENTRON 5SL4302-7RC is a 3-pole miniature circuit breaker (MCB) with a C-curve trip characteristic, rated 2 A and breaking 10 kA at 415 V AC per EN 60898. At 2 A it's a low-current branch, often used for control circuits or lighting sub-circuits where the load is under 500 VA per phase.

At 18 mm wide (1 modular width unit), it occupies a single slot, leaving room for auxiliaries or other breakers in a crowded enclosure. The terminals accept supplementary devices (shunt trip, auxiliary contacts) if you need remote tripping or status feedback.

The 5SL4302-7RC is halogen-free and silicon-free throughout its construction, which matters for outgassing-sensitive environments like clean rooms or telecom shelters.

Frequently asked questions

What is the breaking capacity of the 5SL4302-7RC?

It is rated 10 kA at 415 V AC according to EN 60898, which covers the standard residential and commercial distribution board fault levels.

Will the 5SL4302-7RC drop into a panel specified for the 5SL4363-7?

No — the 5SL4363-7 is a 3-pole breaker but 54 mm wide (3 MW), while the 5SL4302-7RC is 18 mm (1 MW). The panel's DIN-rail mounting slots are the same, but the 5SL4363-7 occupies three times the width and is rated 63 A, not 2 A. They are not drop-in replacements.

Where can I buy the 5SL4302-7RC and how is it quoted?

We source and quote the 5SL4302-7RC to order against an RFQ. Availability and current pricing are confirmed at quote time through our independent distribution network.
