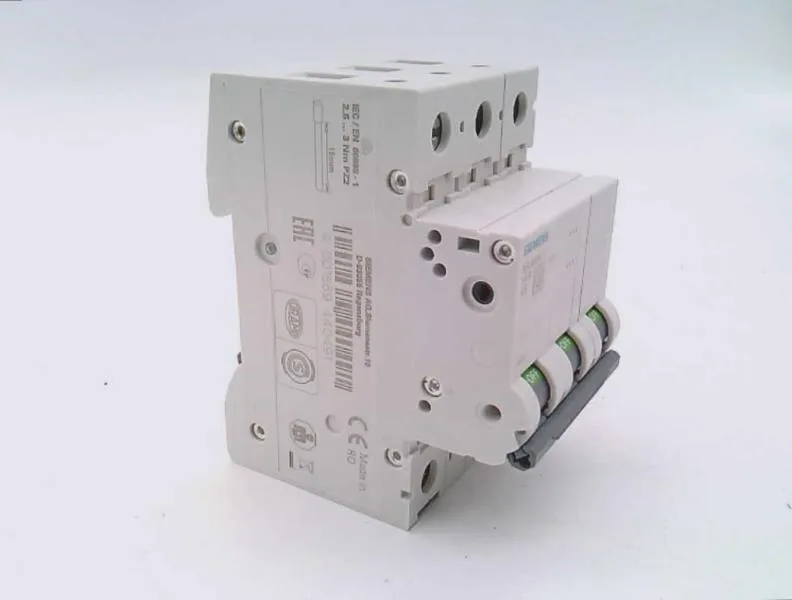

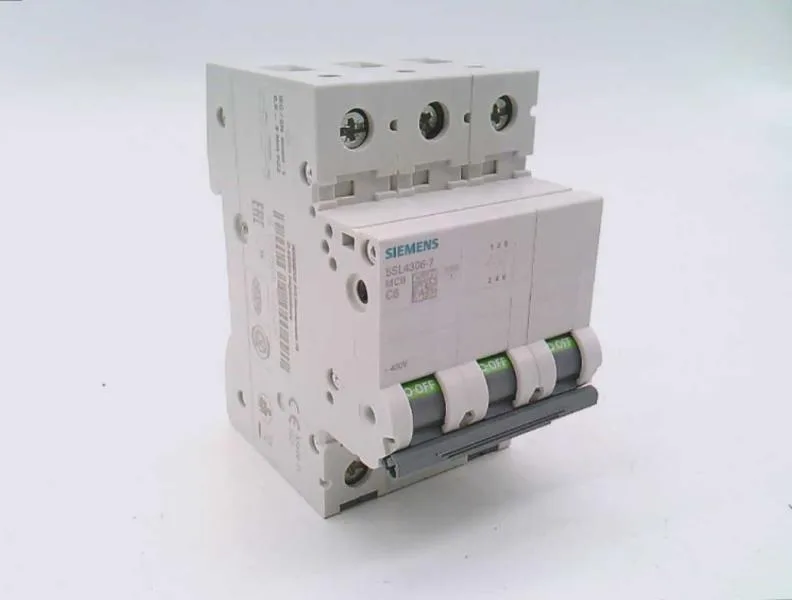

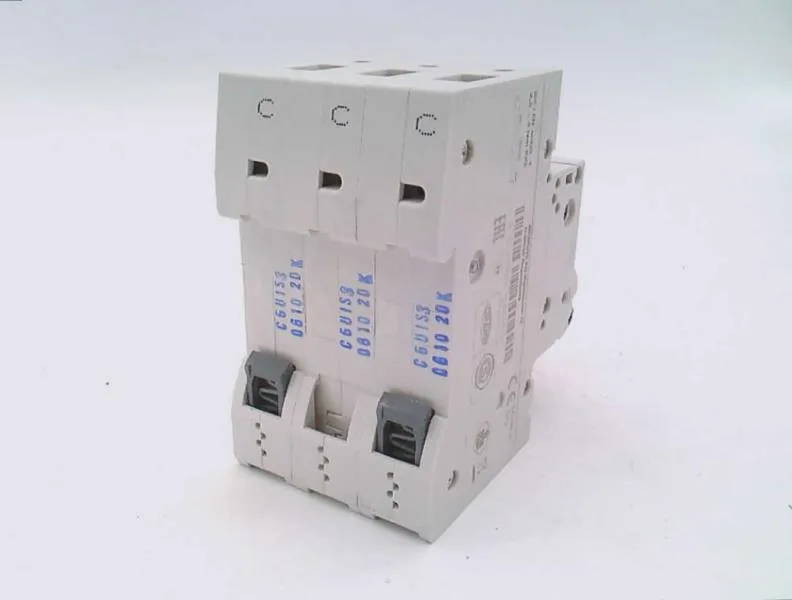

Siemens 5SL4306-7 — 3-Pole MCB (DIN Rail)

Siemens 5SL4306-7 3-Pole MCB, C-Curve, 6A, 10kA

MPN5SL4306-7
Active

Siemens SENTRON 5SL4306-7, 3-pole miniature circuit breaker, C-curve, 6 A, 10 kA breaking capacity per EN 60898 and IEC 60947-2, 400 V AC.

$22.86Ref. price · indicative, final on quote
Siemens 5SL4306-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SL4306-7 — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationResidential buildings/infrastructure
5SL4306-7 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 6089810 kA
Breaking capacity per IEC 60947-210 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Energy limitation class3
Pollution degree2
5SL4306-7 — Electrical
ParameterValue
Rated voltage (AC, multi-phase)440 V
Voltage type (AC/DC)AC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)1.6 W
Mechanical service life (operating cycles, typ.)10 000
5SL4306-7 — Mechanical
ParameterValue
Modular width units3
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
SealableYes
Accepts supplementary devicesYes
5SL4306-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes

Product details

Breaking capacity and trip curve for panel coordination

The Siemens 5SL4306-7 is a 3-pole SENTRON miniature circuit breaker rated 6 A with a C-curve trip characteristic, designed for 400 V AC three-phase circuits. Its 10 kA breaking capacity is certified to both EN 60898 and IEC 60947-2, meaning it can safely interrupt fault currents up to 10 kA without upstream device intervention — a key figure for panel selectivity studies.

Active production and sourcing posture

The 5SL4306-7 accepts add-on auxiliary switches, shunt trips, and alarm contacts via the SENTRON accessory system, so a single panel stock keeps spares common across multiple circuit configurations.

Occupies 3 modular width units (54 mm) on a DIN rail, with a 70 mm installation depth and 76 mm overall depth. Mounting position is unrestricted — install it in any orientation inside the enclosure. Rated for ambient temperatures from -40 °C to 75 °C, with IP20 protection (finger-safe when conductors are connected).

Frequently asked questions

Is the 5SL4306-7 suitable for 3-phase applications?

Yes — it's a 3-pole breaker rated 400 V AC with multi-phase operation up to 440 V AC, making it a direct fit for three-phase 400/440 V line circuits.

Is the 5SL4306-7 suitable for DC applications?

Its DC rating is limited to 72 V maximum. For higher DC voltages or DC-specific trip curves, a dedicated DC-rated MCB should be selected.
