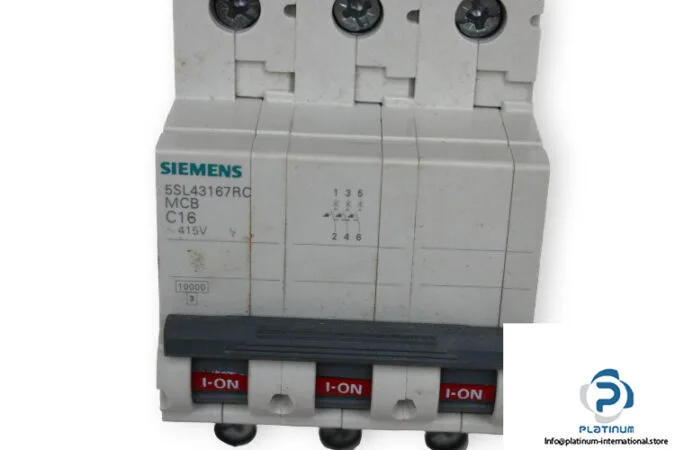

Siemens SENTRON 5SL4316-7RC, miniature circuit breaker, 3-pole, C-curve, 16 A, 10 kA per EN 60898 at 415 V AC, 1 MW width.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Suitability for operation | Residential buildings/infrastructure |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Overvoltage category | III |
| IP protection class | IP20, with connected conductors |
| Energy limitation class | 3 |
| Pollution degree | 2 |
| Parameter | Value |
|---|---|
| Rated voltage (AC, multi-phase) | 440 V |
| Voltage type (AC/DC) | AC |
| Supply frequency range | 50/60 Hz |
| Power loss per pole at rated current (AC, hot) | 1.92 W |
| Mechanical service life (operating cycles, typ.) | 10 000 |
| Rated voltage (AC, single-phase) | 250 V |
| Parameter | Value |
|---|---|
| Modular width units | 1 |
| Mounting position | any |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Sealable | Yes |
| Accepts supplementary devices | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Vibration resistance (IEC 60068-2-6) | no |
The Siemens 5SL4316-7RC is a SENTRON miniature circuit breaker rated 16 A, 3-pole, with a C tripping characteristic and a 10 kA breaking capacity per EN 60898 at 415 V AC.
At 18 mm wide (1 MW), this breaker occupies a single modular slot on standard DIN rail. Mounting position is any, so vertical or horizontal rail orientation is fine.
Pricing and availability are confirmed at quote time. Submit an RFQ against this order code through the distributor; the response will include current stock position and per-unit pricing.
No — the 5SL4363-7 is a 3-pole breaker at 54 mm wide (3 MW), while the 5SL4316-7RC is 18 mm wide (1 MW). The footprint is different, so a panel cutout or DIN-rail allocation designed for the wider unit cannot accept the narrower one without a filler or re-spacing. Both share the same 76 mm depth and 90 mm height, so depth clearance is not an issue.
The 5SL4316-7RC carries a 10 kA breaking capacity rating per EN 60898, which is the harmonized European standard for MCBs in household and similar installations. It is also rated for overvoltage category III and pollution degree 2. The product is halogen-free and silicon-free. Specific RoHS/REACH declarations and the CE declaration of conformity are available from Siemens documentation for the SENTRON 5SL4 series.
