Siemens 5SL6420-7BB — Miniature Circuit Breakers (MCB)

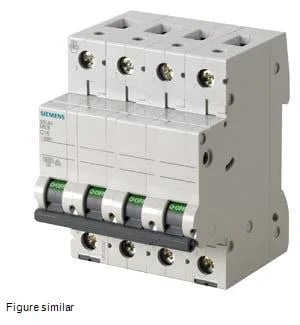

Siemens 5SL6420-7BB SENTRON MCB, 4P C-20A 6kA

MPN5SL6420-7BB

Siemens SENTRON 5SL6420-7BB miniature circuit breaker, 4-pole, C-curve, 20 A rated at 400 V AC, 6 kA breaking capacity per IEC 60898 and IEC 60947-2.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

5SL6420-7BB — Ratings
ParameterValue
Overvoltage categoryIII
5SL6420-7BB — Mechanical
ParameterValue
Width72 mm
Height90 mm
Depth76 mm

Product details

The Siemens 5SL6420-7BB is a SENTRON miniature circuit breaker (MCB) in a 4-pole (4P) configuration, C-curve tripping characteristic, rated 20 A at 400 V AC.

Current production — no phase-out notice on record. The 5SL6 series is Siemens' standard residential/infrastructure MCB line, widely specified across Europe and Asia. For a BOM freeze, this part is stable; no PCN or LTB expected in the near term.

The breaker does not switch the neutral (4P without neutral switching), so it's a straight 4-pole overcurrent protection device for three-phase loads where the neutral is solidly connected. Temperature derating is published: 18.94 A at 40 °C, 18.4 A at 45 °C, 17.24 A at 55 °C — factor that into the panel thermal design if the breaker is in a warm cabinet.

MPN
5SL6420-7BB
