Siemens 5SM3316-0 — Residual Current Breakers (RCCB/RCBO)

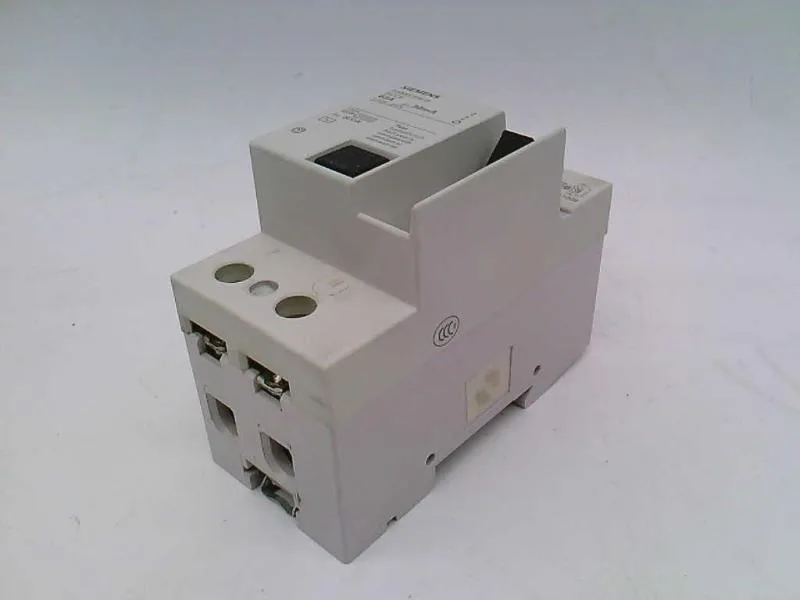

Siemens 5SM3316-0 SENTRON RCCB, 63 A, 30 mA, 2-pole

MPN5SM3316-0

Siemens SENTRON 5SM3 series RCCB, 63 A rated current, 30 mA residual trip, 230 V AC, 2-pole, instantaneous, DIN rail mount.

$311.92Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SM3316-0 — Electrical Ratings
ParameterValue
Number of poles2
Overvoltage categoryIII
5SM3316-0 — Identification
ParameterValue
Product designationRCCB
Product design / constructionInstantaneous
5SM3316-0 — Mechanical
ParameterValue
Mounting positionany
Maximum45 °C
Minimum-5 °C
Width36 mm
Height90 mm
Depth70 mm
Installation depth70 mm
5SM3316-0 — Environmental
ParameterValue
IP degree of protectionIP20, if the distribution board is installed, with connected conductors

Product details

The Siemens 5SM3316-0 is a SENTRON 5SM3-series residual current circuit breaker (RCCB) rated 63 A at 230 V AC, with a 30 mA residual trip threshold. Two-pole, instantaneous-trip design — no intentional delay, so it clears a ground fault as fast as the fault current rises. Mounts on DIN rail (REG), 36 mm wide (2.5 width units), 70 mm deep, 90 mm tall. Rated for 50 Hz only, so it's a straight 50 Hz market part; if your site runs 60 Hz, this isn't the one.

Full 63 A rating holds up to 45 °C ambient. Above that, it derates: 60.48 A at 50 °C, 57.96 A at 55 °C, 55.44 A at 60 °C, 52.92 A at 65 °C, 50.4 A at 70 °C. If the panel sits in a hot machine room or near a furnace, size the upstream breaker for the derated current, not the nameplate 63 A.

Frequently asked questions

What are the key ratings of 5SM3316-0?

Rated 63 A at 230 V AC, 30 mA residual trip current, 2-pole, instantaneous trip, AC fault current type, 50 Hz only.

Where can I buy 5SM3316-0?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing confirmed at quote time.

What is the depth of 5SM3316-0?

70 mm depth, 36 mm width (2.5 width units), 90 mm height.
