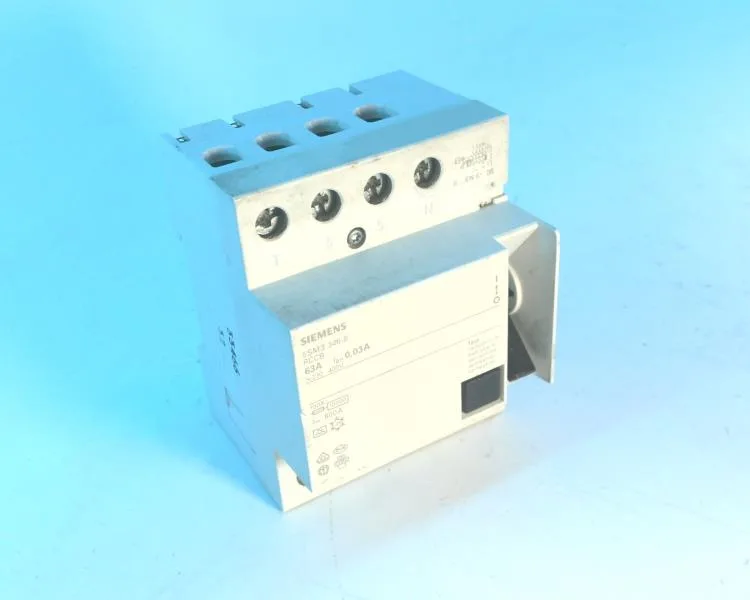

Siemens 5SM3346-6 — Residual Current Breakers (RCCB/RCBO)

Siemens SENTRON 5SM3346-6 RCCB, 4-pole, 63 A, 30 mA, Type A,

MPN5SM3346-6

Siemens SENTRON 5SM3346-6, 4-pole RCCB, instantaneous Type A, 63 A at 40 °C, 30 mA trip, 400 V AC, 10 kA SCCR, DIN rail mount.

$190.93Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SM3346-6 — Electrical Ratings
ParameterValue
Number of poles4
Overvoltage categoryIII
5SM3346-6 — Identification
ParameterValue
Product designationRCCB
Product design / constructionInstantaneous
5SM3346-6 — Mechanical
ParameterValue
Mounting positionany
Width in modular units4
Maximum45 °C
Minimum-25 °C
Width72 mm
Height90 mm
Depth77 mm
Installation depth70 mm
5SM3346-6 — Environmental
ParameterValue
IP degree of protectionIP20, if the distribution board is installed, with connected conductors
5SM3346-6 — Electrical
ParameterValue
Operational current / at AC / rated value63 A

Product details

The Siemens SENTRON 5SM3346-6 is a 4-pole residual current circuit breaker (RCCB) — instantaneous Type A, rated 63 A at 40 °C, tripping at 30 mA residual current. It's built for 400 V AC, 50 Hz networks, with a short-circuit current rating of 10 kA. Type A means it catches pulsating DC faults on top of sinusoidal AC, which covers modern electronics with half-wave rectification.

Mounting position is unrestricted — horizontal, vertical, flat, any orientation works.

Above that, derate linearly: 60.48 A at 50 °C, 57.96 A at 55 °C, 55.44 A at 60 °C, 52.92 A at 65 °C, and 50.4 A at 70 °C. If your panel ambient runs warm — say, 55 °C inside a packed enclosure — you're effectively working with a 58 A device, not 63 A.

Frequently asked questions

Where can I buy 5SM3346-6 and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.

What is 5SM3346-6's listed depth and width?

Depth is 77 mm, width is 72 mm (4 modular units), height is 90 mm. Installation depth is 70 mm.

What compliance documentation does this brand provide for 5SM3346-6?

The part carries designations per IEC 81346-2 and DIN EN 61346-2 (function code F). It's rated according to IEC 61008-1 and EN 60898. Overvoltage category III. Silicon-free. The manufacturer provides standard declarations of conformity for CE marking; specific UL/CSA documentation should be confirmed at order.

MPN
5SM3346-6
