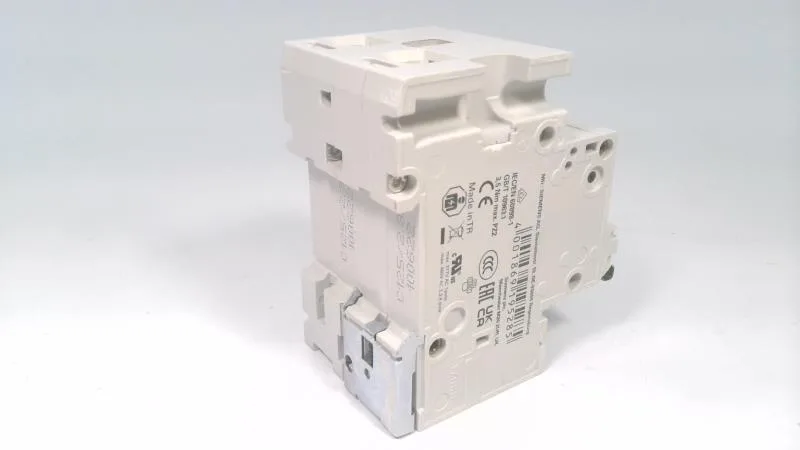

Siemens 5SP4292-7 — 2-Pole MCB (DIN Rail)

Siemens 5SP4292-7 SENTRON MCB, 2P C 125A 10kA 400V

MPN5SP4292-7
Active

Siemens SENTRON 5SP Miniature circuit breaker, 2-pole, C-curve, 125 A, 10 kA per EN 60898 at 400 V AC, depth 76 mm, width 54 mm, height 90 mm.

$60.96Ref. price · indicative, final on quote
Siemens 5SP4292-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SP4292-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
5SP4292-7 — Electrical
ParameterValue
Number of poles2
Supply voltage at AC rated value400 V
5SP4292-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SP4292-7 — Mechanical
ParameterValue
Modular width units3
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20 with connected conductors, IP40 in the area of the handle with distribution cover
5SP4292-7 — Environmental
ParameterValue
Pollution degree3
5SP4292-7 — Specifications
ParameterValue
At AC rated value440 V
According to EN 60898 rated value10 kA

Product details

Commissioning note

The Siemens 5SP4292-7 is a SENTRON miniature circuit breaker — 2-pole, C-curve, rated 125 A with a 10 kA breaking capacity per EN 60898 at 400 V AC. Mounts on DIN rail (35 mm) or screw fixing; any orientation allowed. The 3-module-width footprint (54 mm) fits standard enclosures. Tunnel terminals top and bottom accept copper conductors; the part is sealable for tamper-proof installations.

IP20 with connected conductors, IP40 at the handle area when covered. Shock-resistant per IEC 60068-2-27 at 150 m/s² for 11 ms half-sine; vibration-resistant per IEC 60068-2-6. Mechanical life typical 10 000 operating cycles. The breaker accepts supplementary devices for remote signaling or shunt trip.

Frequently asked questions

What is the breaking capacity of the Siemens 5SP4292-7 at 400V?

Buyers must confirm the 10kA Icn rating per EN 60898 matches their fault-level study before purchase.

Is the Siemens 5SP4292-7 still active or discontinued?

Sourcing and LTB managers need confirmed lifecycle status to plan buys or migration paths.

What are the dimensions and DIN-rail footprint of the 5SP4292-7?

Cabinet layout engineers need 54x90x76 mm and depth data to validate panel fit.

Is there a form-fit-function equivalent or replacement for the 5SP4292-7?

Maintenance, MRO and sourcing users need a drop-in alternate that preserves the C-curve and 10kA rating.

What is the C-curve trip characteristic and 125A rating of the 5SP4292-7?

Functional safety and calibration engineers need trip-curve tolerance bands for coordination studies.

Where can I buy the 5SP4292-7 from an authorized distributor with traceability?

Sourcing buyers and brokers need verified channel options, date-code paperwork and counterfeit avoidance.
