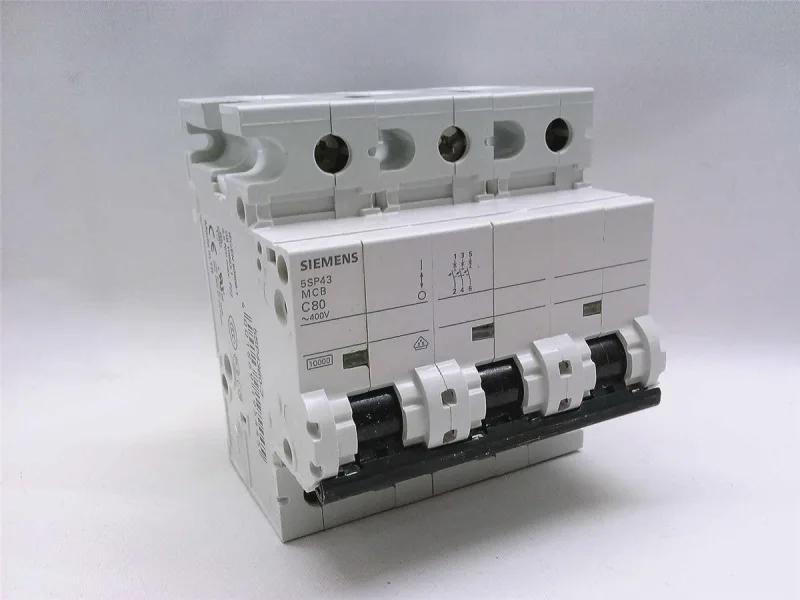

Siemens SENTRON 5SP Miniature Circuit Breaker, 3-pole, C-curve, 80 A, 400 V AC, 10 kA breaking capacity, 4.5 MWU, DIN rail mount.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Overvoltage category | 3 |
| IP protection class | IP20 with connected conductors, IP40 in the area of the handle with distribution cover |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Rated voltage (AC, multi-phase) | 440 V |
| Voltage type (AC/DC) | AC |
| Supply frequency range | 50/60 Hz |
| Power loss per pole at rated current (AC, hot) | 7 W |
| Mechanical service life (operating cycles, typ.) | 10 000 |
| Parameter | Value |
|---|---|
| Modular width units | 4.5 |
| Mounting position | any |
| Width | 81 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Fastening method | DIN rail and screw fixing |
| Sealable | Yes |
| Accepts supplementary devices | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Influence of surrounding temperature | Max. 95% rel. humidity |
| Vibration resistance (IEC 60068-2-6) | 50m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
The Siemens 5SP4380-7 is a SENTRON 5SP miniature circuit breaker — 3-pole, C-curve, 80 A rated current at 400 V AC, with a 10 kA breaking capacity certified to EN 60898.
IP20 with connected conductors, IP40 at the handle area with a distribution cover — fine for a dry indoor panel.
10 kA per EN 60898 at 400 V AC. That's the standard residential and light-commercial fault level — adequate for most panelboards and sub-distribution boards.
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm number.
Both are 3-pole SENTRON 5SP breakers with the same 4.5 MWU footprint and DIN-rail mounting — same mechanical envelope. The difference is rating: 5SP4380-7 is 80 A C-curve; 5SP4292-7 is a different current/curve. If the panel bus and load side are sized for 80 A, it swaps in without rewiring.
