SENTRON 5SQ series, 1-pole miniature circuit breaker, B-curve, 25 A, 3 kA per EN 60898, 240 V AC/DC, IP20, 55 mm depth.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 1 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | B |
| Rated value (EN 60898) | 3 kA |
| Overvoltage category | 3 |
| Parameter | Value |
|---|---|
| Installation depth | 55 mm |
| Parameter | Value |
|---|---|
| IP protection class | IP20 |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Type of voltage | AC/DC |
| Energy limiting class | 3 |
| Number of width units | 1 |
| Number of poles (Note) | 1P |
| Circuit-breaker (Design) | 5SQ |
| Supply voltage (at AC) | 240 V |
| Supply voltage frequency | 50 Hz |
| Operating current (at AC) | 25 A |
| Product function (neutral conductor switching) | No |

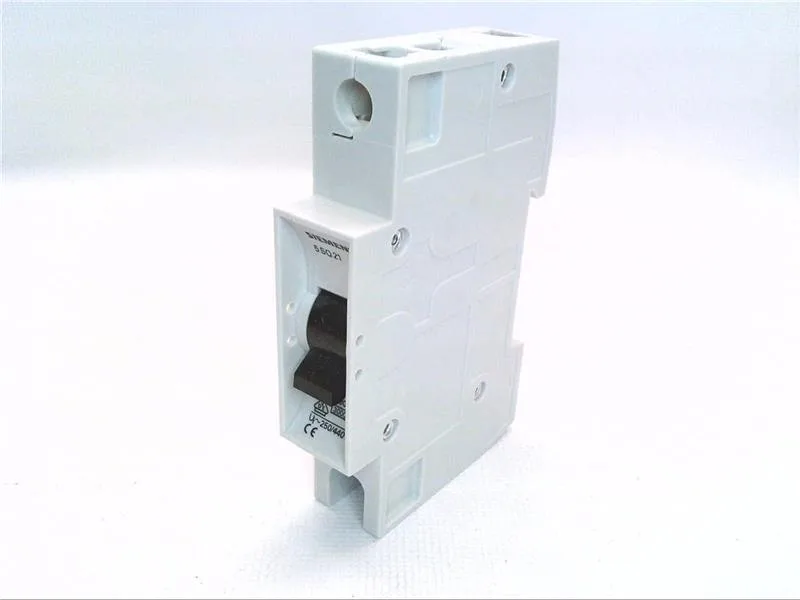

The SENTRON 5SQ2160-0KA25 is a 1-pole miniature circuit breaker from the 5SQ series, rated 25 A with a B tripping characteristic and a 3 kA breaking capacity per EN 60898. It handles AC/DC supply at 240 V, 50 Hz, and fits a single width unit on a DIN rail — 55 mm installation depth keeps it flush in standard distribution boards.
Pollution degree 3, overvoltage category 3.
Current-production per Siemens. Sourced to order against RFQ through independent distribution.
