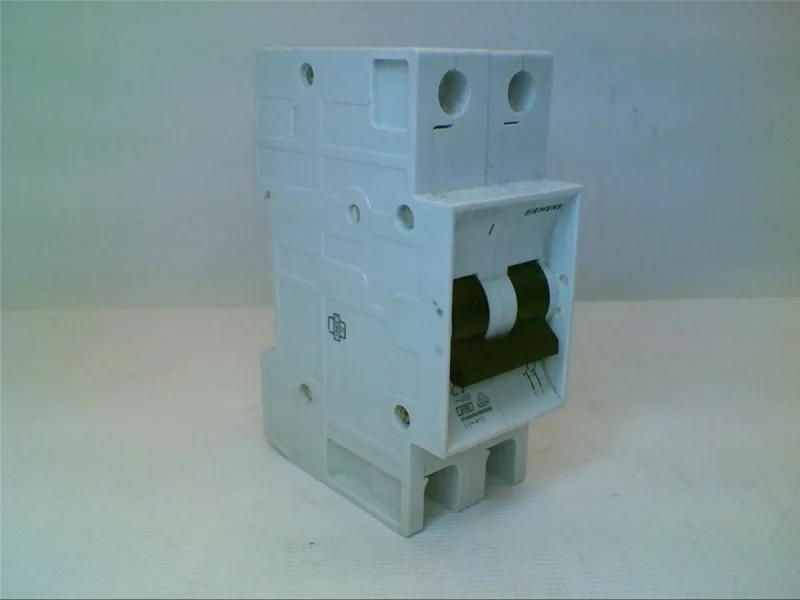

Siemens 5SQ2270-0KA03 — 2-Pole MCB (DIN Rail)

SENTRON 5SQ2270-0KA03 MCB, 2-pole C-curve 3A, 400V AC

MPN5SQ2270-0KA03

SENTRON 5SQ2270-0KA03, miniature circuit breaker, 2-pole, C characteristic, 3 A rated current, 400 V AC, 3 kA breaking capacity per EN 60898, IP20, 55 mm installation depth.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

5SQ2270-0KA03 — Identification
ParameterValue
Brand nameSENTRON
5SQ2270-0KA03 — Electrical
ParameterValue
Number of poles2
5SQ2270-0KA03 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SQ2270-0KA03 — Mechanical
ParameterValue
Installation depth55 mm
Protection degree (IP)IP20
5SQ2270-0KA03 — Other specifications
ParameterValue
Type of voltageAC/DC
Energy limiting class3
Number of width units2
Number of poles (Note)2P
Circuit-breaker (Design)5SQ
Current (at AC)3 A
Acc. to EN 60898 / rated value3 kA
Supply voltage (at AC)400 V
Supply voltage frequency50 Hz
Product function (neutral conductor switching)Yes

Product details

It is designed for branch-circuit protection in final distribution boards, switching both phase and neutral conductors. That is a standard residential and light-commercial level; if your panel's prospective short-circuit current exceeds 3 kA, you need an upstream current-limiting device or a higher-rated breaker.

Installation depth is 55 mm — shallower than many SENTRON siblings (the 5SU9 RCBOs run 70–77 mm), which matters when the gland plate or enclosure depth is tight. IP20 rated, so it belongs inside a distribution board or enclosed panel — not in a wet or dust-exposed location. Overvoltage category III confirms it is rated for fixed-installation downstream of the utility meter. Energy limiting class 3 means it restricts let-through energy in a fault, helping with downstream device coordination and reducing arc-flash risk on the branch.

Frequently asked questions

Does 5SQ2270-0KA03 switch the neutral?

Yes, it is a 2-pole breaker with neutral conductor switching — both phase and neutral are disconnected when the breaker trips or is manually opened.
