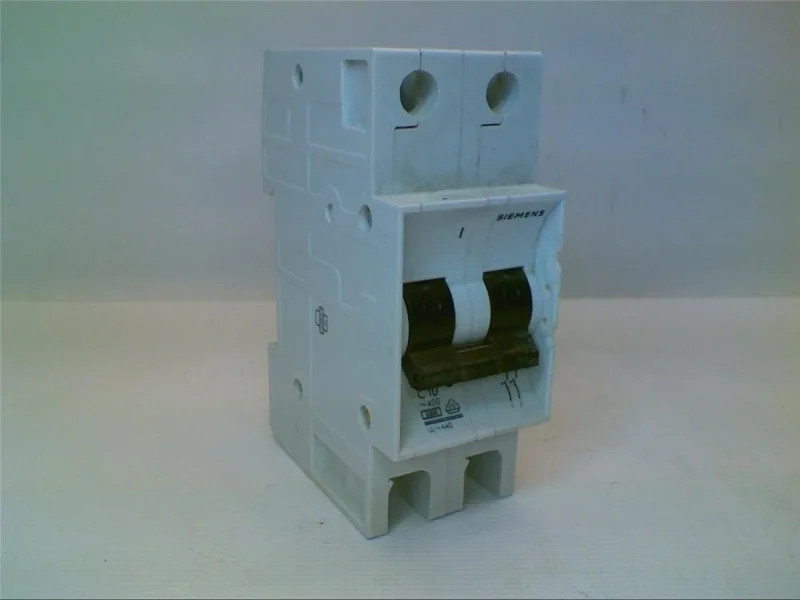

Siemens 5SQ2270-0KA10 — 2-Pole MCB (DIN Rail)

Siemens SENTRON 5SQ2270-0KA10 MCB, 2-pole C 10A 400V AC/DC

MPN5SQ2270-0KA10

Siemens SENTRON 5SQ2270-0KA10 miniature circuit breaker, 2-pole, C-curve, 10 A, 400 V AC, 3 kA breaking capacity per EN 60898, IP20, 55 mm depth.

$65.66Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

5SQ2270-0KA10 — Identification
ParameterValue
Brand nameSENTRON
5SQ2270-0KA10 — Electrical
ParameterValue
Number of poles2
5SQ2270-0KA10 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage category3
5SQ2270-0KA10 — Mechanical
ParameterValue
Installation depth55 mm
Protection degree (IP)IP20
5SQ2270-0KA10 — Other specifications
ParameterValue
Type of voltageAC/DC
Energy limiting class3
Number of width units2
Number of poles (Note)2P
Circuit-breaker (Design)5SQ
Current (at AC)10 A
Acc. to EN 60898 / rated value3 kA
Supply voltage (at AC)400 V
Supply voltage frequency50 Hz
Product function (neutral conductor switching)Yes

Product details

The Siemens SENTRON 5SQ2270-0KA10 is a 2-pole miniature circuit breaker rated 10 A at 400 V AC with a C tripping characteristic.

Occupies 2 width units (36 mm) on a DIN rail, with an installation depth of 55 mm — shallow enough to clear most enclosure back panels without crowding. IP20 finger-safe terminals suit enclosed distribution boards; no special sealing for washdown or outdoor exposure. The neutral conductor is switched internally (2-pole switching), so this breaker isolates both phase and neutral on fault or manual disconnect — a requirement in many regional wiring codes for final subcircuits.

Frequently asked questions

What is the breaking capacity of 5SQ2270-0KA10?

The breaking capacity is 3 kA according to EN 60898 at 400 V AC.

Where can I buy 5SQ2270-0KA10?

This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the difference between 5SQ2270-0KA10 and 5SU9304-1KK32?

The 5SU9304-1KK32 is an RCBO (RCD + MCB) with 30 mA residual current protection, rated 32 A, and a 10 kA breaking capacity — higher fault rating and adds earth-leakage protection. The 5SQ2270-0KA10 is a plain MCB with no RCD, lower 3 kA breaking capacity, and 10 A rating. They are not drop-in substitutes; the RCBO requires neutral connection and occupies a different width.
