Siemens 5SU1154-7KK16

Siemens 5SU1154-7KK16 SENTRON RCBO, 16 A, 10 kA, Type A, 10

MPN 5SU1154-7KK16
Active

Siemens SENTRON 5SU1154-7KK16 RCBO, 1P+N, 16 A, 10 kA (EN 60898) / 20 kA (IEC 60947-2), Type A, 10 mA, C-curve, 230/240 V AC, 50 Hz.

$48.26 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

5SU1154-7KK16 specifications
ParameterValue
Poles2
Depth77 mm
Width36 mm
Height90 mm
Energy limitation class3

Product details

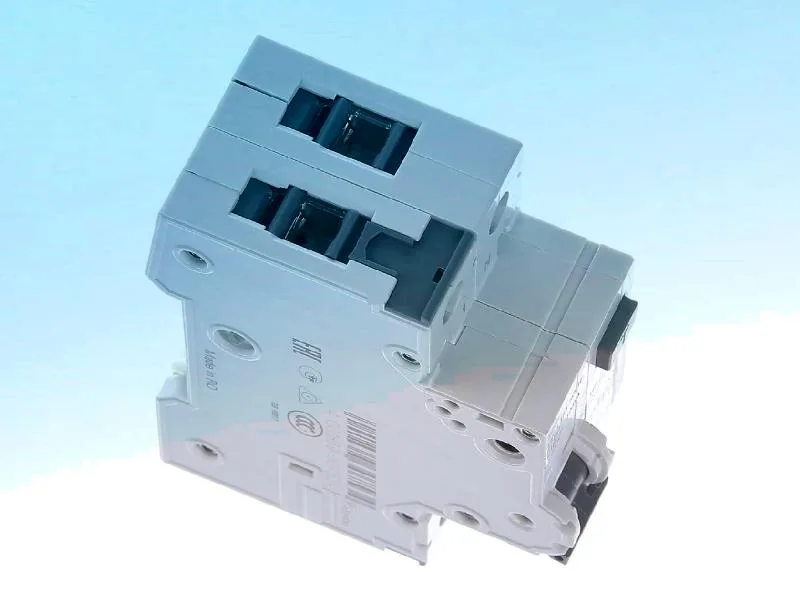

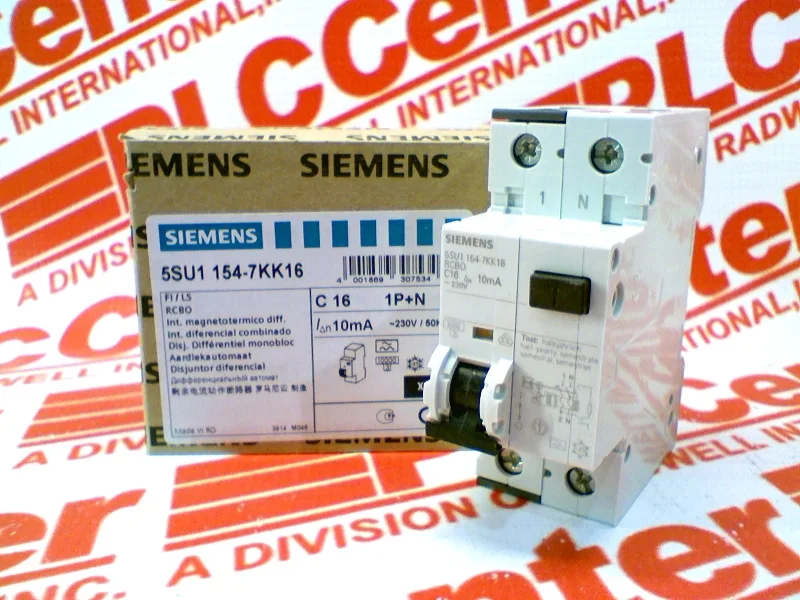

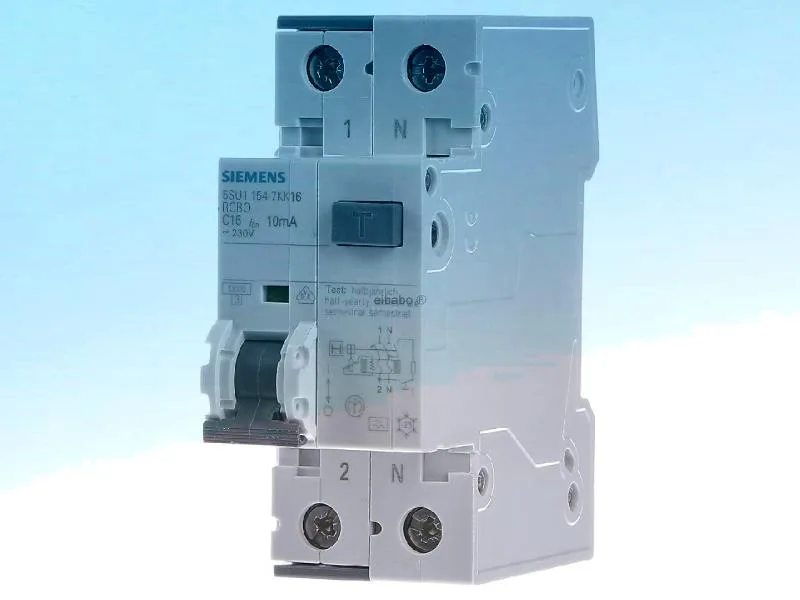

The Siemens 5SU1154-7KK16 is a SENTRON RCBO combining residual current and overcurrent protection in a 36 mm wide, 2-module package. It protects a 1P+N circuit at 16 A, C-curve, 230/240 V AC, 50 Hz.

The higher IEC figure applies when the device is installed as a distribution circuit breaker (higher prospective fault current); the EN figure governs for standard final-circuit coordination. Residual sensitivity: Type A, 10 mA. Type A detects AC sinusoidal and pulsating DC fault currents, which covers most modern electronic loads (switched-mode power supplies, LED drivers, variable-speed drives with single-phase front ends). The 10 mA threshold is for wet-location or high-sensitivity circuits (e.g., bathrooms, outdoor sockets). That's a wide operating window — suitable for unheated enclosures or outdoor-rated panels in cold climates. Humidity tolerance up to 95 % means condensation-prone environments are manageable. Mechanical service life: 10 000 operating cycles typical. For a residential or light commercial RCBO, that's standard — expect the residual-current test button to be exercised periodically per local code, but the main switch contacts are rated for the full 10k cycles under load.

Width is 2 modular units (36 mm), depth 77 mm, installation depth 70 mm. IP20 with connected conductors (typical for enclosed distribution boards).

MPN
5SU1154-7KK16
