Siemens 5SU1356-6KK06

Siemens 5SU1356-6KK06 SENTRON RCBO, 6A B-Curve, 6/25 kA

MPN 5SU1356-6KK06
Active

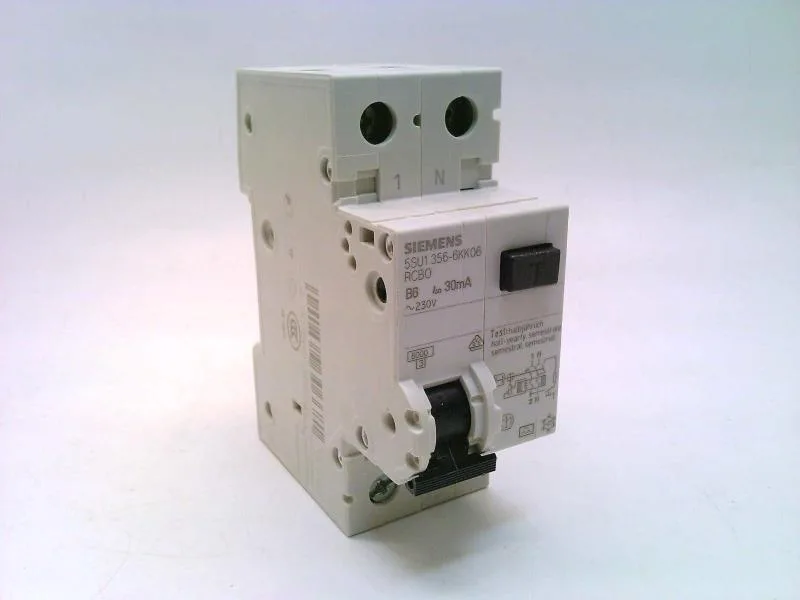

Siemens SENTRON 5SU1356-6KK06 RCBO, 1P+N, 6 A at 30 °C, B-curve, 6 kA (EN 60898) / 25 kA (IEC 60947-2), 2 MW, 36 mm wide.

$41.91 – $109.70 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

5SU1356-6KK06 specifications
ParameterValue
Poles2
Depth77 mm
Width36 mm
Height90 mm
Energy limitation class3

Product details

It protects a 1P+N circuit at 6 A rated current (at 30 °C) with a B-curve tripping characteristic, meaning it will trip at 3–5 times rated current for fast short-circuit response on resistive or light inductive loads.

Rated IP20 with conductors connected and distribution board installed. Ambient temperature range -40 °C to 75 °C, but the current must be derated above 30 °C — at 40 °C it carries 5.7 A, at 50 °C 5.4 A, at 60 °C 5.1 A, and at 70 °C 4.62 A. Halogen-free and silicon-free construction.

Coordination & compliance

Overvoltage category III, pollution degree 2, insulation voltage 264 V, surge voltage resistance 4 kV. Energy limitation class 3. The RCBO is instantaneous type (no intentional delay). For selectivity studies, the 25 kA rating under IEC 60947-2 gives better fault-clearing capability than the 6 kA EN 60898 rating — useful when coordinating with upstream breakers in a high-fault panel.

MPN
5SU1356-6KK06
