Siemens 5SV3316-6 — Residual Current Breakers (RCCB/RCBO)

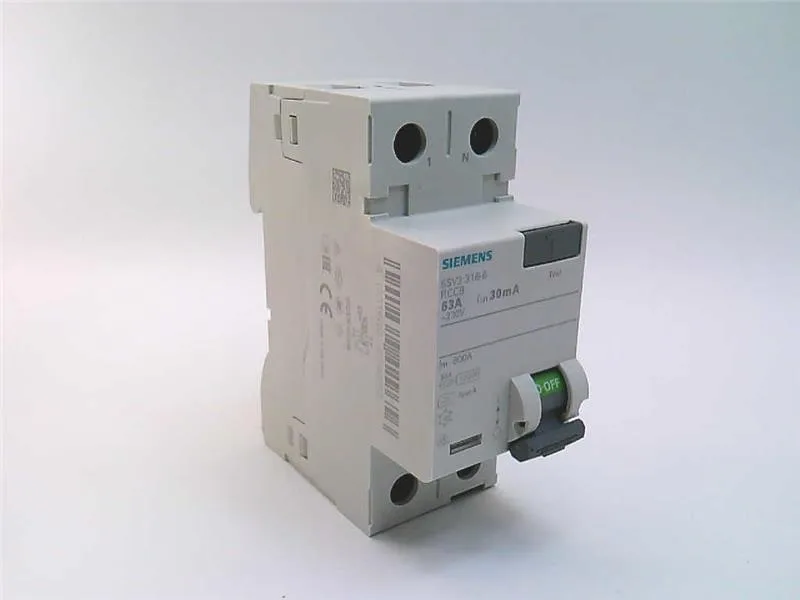

Siemens 5SV3316-6 SENTRON RCCB, 2-pole, 63 A, 30 mA, Type A

MPN5SV3316-6
Active

Siemens SENTRON RCCB, 2-pole, Type A, In: 63 A, 30 mA, Un AC: 230 V, instantaneous, 10 kA SCCR, DIN rail mount, IP20.

$59.69Ref. price · indicative, final on quote
Siemens 5SV3316-6 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SV3316-6 — Electrical Ratings
ParameterValue
Number of poles2
Overvoltage categoryIII
5SV3316-6 — Identification
ParameterValue
Product designationRCCB
Product design / constructionInstantaneous
5SV3316-6 — Mechanical
ParameterValue
Mounting positionany
Width in modular units2
Maximum45 °C
Minimum-25 °C
Width36 mm
Height90 mm
Depth70 mm
Installation depth70 mm
5SV3316-6 — Environmental
ParameterValue
IP degree of protectionIP20, if the distribution board is installed, with connected conductors

Product details

The Siemens 5SV3316-6 is a SENTRON residual current circuit breaker (RCCB), 2-pole, Type A, rated 63 A with 30 mA trip sensitivity on 230 V AC, 50 Hz mains. It's instantaneous, no intentional delay, so it clears fast on a ground fault.

Depth is 70 mm, so it sits flush in a standard 60 mm grid-spaced distribution board. IP20 with conductors connected; fine inside a closed distribution board, not for wet or washdown zones.

The permissible series fuse is 80 A max. Ambient range -25 °C to +45 °C; storage down to -40 °C. Silicon-free construction, which matters in automotive or coating lines where silicone outgassing can contaminate surfaces.

Frequently asked questions

Will the 5SV3316-6 drop into a panel specified around the 5SU9354-7KK20 without rewiring?

The 5SV3316-6 is a pure RCCB (no overcurrent protection), while the 5SU9354-7KK20 is an RCBO (combined RCD + MCB in one unit). Both occupy 2 modular units (36 mm) on DIN rail and share the same 70 mm installation depth, so the mechanical footprint is identical. However, the 5SU9354-7KK20 includes a C-curve MCB and is 1P+N; the 5SV3316-6 is 2-pole and requires a separate upstream MCB for overcurrent protection. Electrically they are not drop-in replacements — the circuit design must account for the separate protection device.

Where can I buy the 5SV3316-6?

The Siemens 5SV3316-6 is sourced and quoted to order through our independent distribution channel. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.
