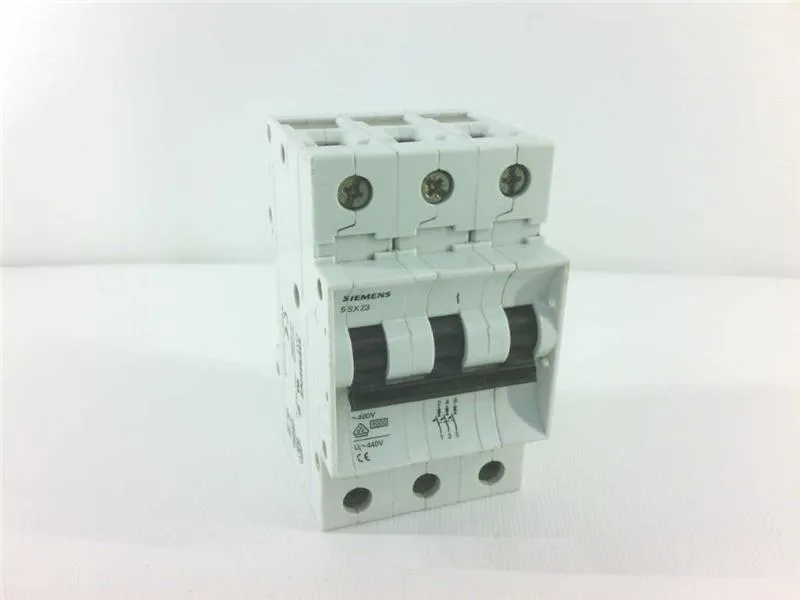

Siemens 5SX2305-8
MPN5SX2305-8
End of Life
CIRCUIT BREAKER T55 400V, 6KA, 3-POLE, D, 0.5A
$92.63Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Design / model code | 5SX2 |
| Brand name | SENTRON |
| Number of poles | 3 |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | D |
| Breaking capacity per EN 60898 | 6 kA |
| Breaking capacity per IEC 60947-2 | 10 kA |
| Overvoltage category | 3 |
| IP protection class | IP20, with connected conductors |
| Parameter | Value |
|---|---|
| Rated frequency | 50 Hz |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Installation depth | 55 mm |
MPN
5SX2305-8
