Siemens 5SX4306-7
MPN5SX4306-7
End of Life

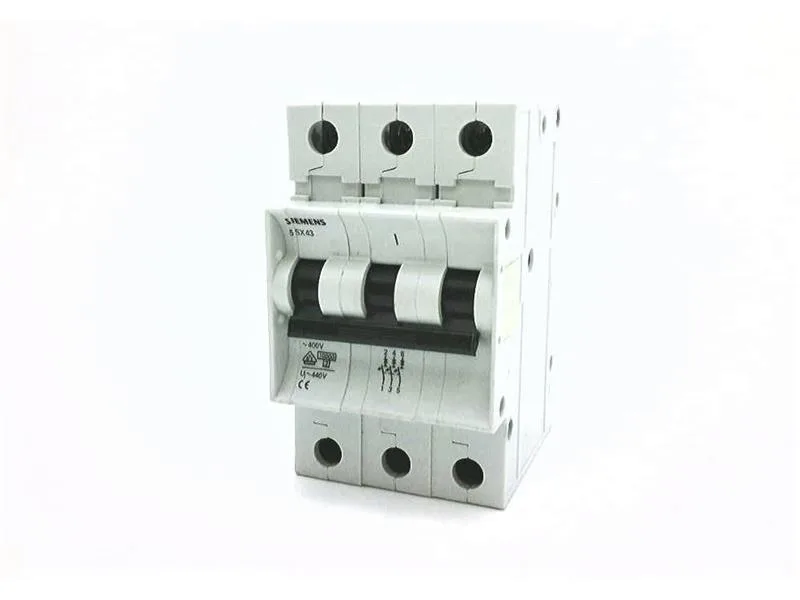

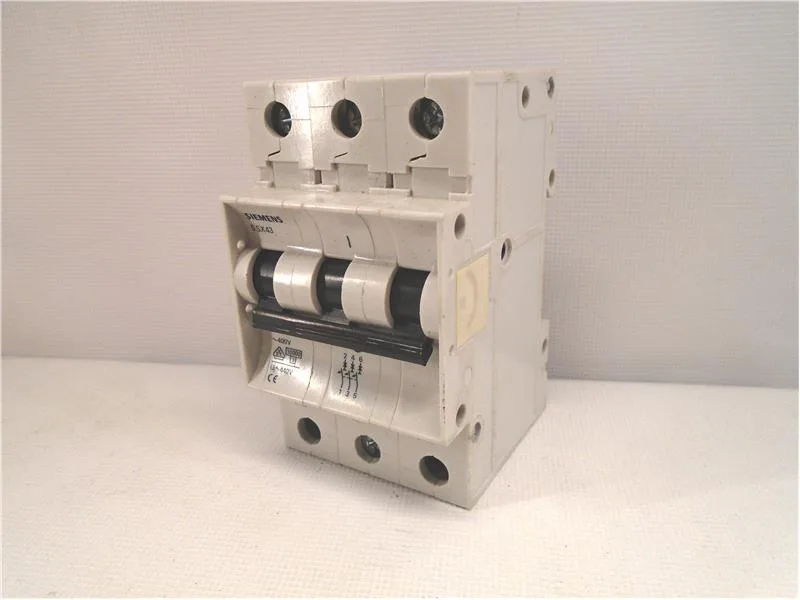

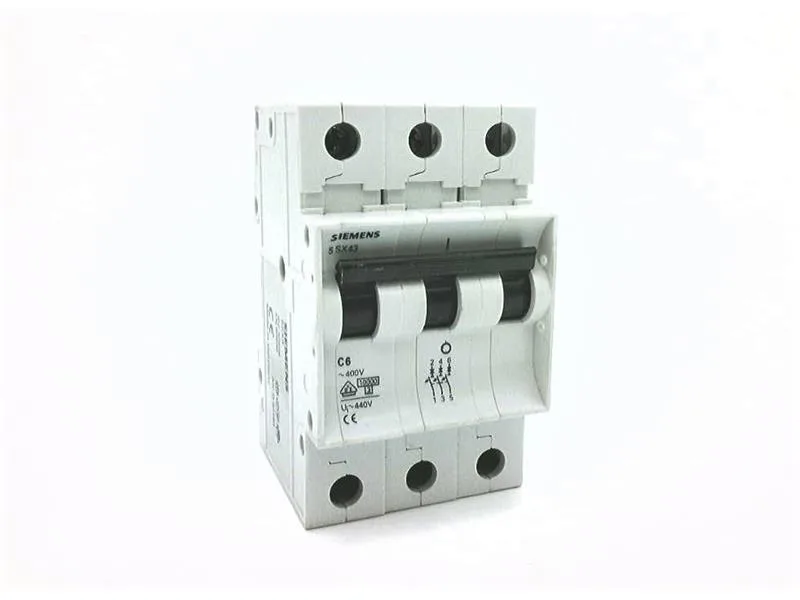

CIRCUIT BREAKER T55 400V, 10KA, 3-POLE, C, 6A
$71.62Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Design / model code | 5SX4 |
| Brand name | SENTRON |
| Number of poles | 3 |
Protection
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Breaking capacity per IEC 60947-2 | 15 kA |
| Overvoltage category | 3 |
| IP protection class | IP20, with connected conductors |
| Pollution degree | 3 |
Electrical
| Parameter | Value |
|---|---|
| Rated frequency | 50 Hz |
Mechanical
| Parameter | Value |
|---|---|
| Mounting position | any |
| Installation depth | 55 mm |
MPN
5SX4306-7
