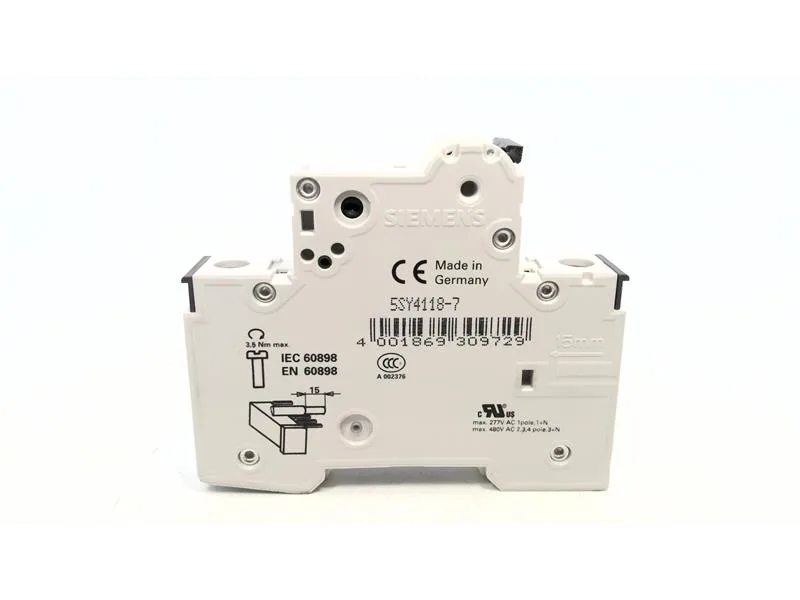

Siemens 5SY4118-7 — 1-Pole MCB (DIN Rail)

Siemens 5SY4118-7 SENTRON MCB, 1P C-curve, 10 kA EN 60898

MPN5SY4118-7
Active

Siemens SENTRON 5SY4118-7, 1-pole miniature circuit breaker, C-curve, 10 kA per EN 60898 / 20 kA per IEC 60947-2, 18 mm width, 76 mm depth, IP20.

$10.67Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

5SY4118-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SY4118-7 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Energy limitation class3
Overvoltage categoryIII
5SY4118-7 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodQuick assembly system
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SY4118-7 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

Siemens 5SY4118-7 SENTRON — 1-pole C-curve MCB

The 18 mm width (1 modular unit) fits standard DIN-rail enclosures; the 76 mm depth leaves clearance for gland plates and wiring ducts.

Breaking capacity and dual-standard certification

Rated 10 kA at 400 V AC per IEC/EN 60898-1 and 20 kA at 400 V AC per IEC 60947-2, the 5SY4118-7 also carries a 15 kA DC rating at 60 V per IEC 60947-2 and a 5 kA rating per UL 1077 / CSA C22.2 No.235. This dual-standard certification (IEC 60898-1 for residential/commercial, IEC 60947-2 for industrial, plus UL/CSA for North American acceptance) means the same part can be specified across global BOMs without requalification.

Panel integration and environmental limits

Mounts in any position via the quick-assembly system (DIN rail). The 18 mm width (1 modular unit) and 70 mm installation depth allow dense packing in standard enclosures. Halogen-free and silicon-free construction suits clean-room or sensitive electronics environments.

Frequently asked questions

What is the breaking capacity of 5SY4118-7?

10 kA at 400 V AC per IEC/EN 60898-1, 20 kA at 400 V AC per IEC 60947-2, 15 kA at 60 V DC per IEC 60947-2, and 5 kA per UL 1077 / CSA C22.2 No.235.

What certifications does 5SY4118-7 carry?

It is certified to IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA C22.2 No.235, covering both IEC and North American standards.

How do I get pricing and availability for 5SY4118-7?

Submit an RFQ through this listing. Pricing and availability are confirmed at quote time; the part is sourced to order through independent distribution channels.

Will 5SY4118-7 fit in a panel designed for 5SY4140-7?

Both are 1-pole SENTRON MCBs with the same 18 mm width and 76 mm depth, so the 5SY4118-7 will physically drop into the same DIN-rail position without rewiring. Verify the current rating and trip curve match your application — the 5SY4140-7 is a higher-rated variant in the same family.
