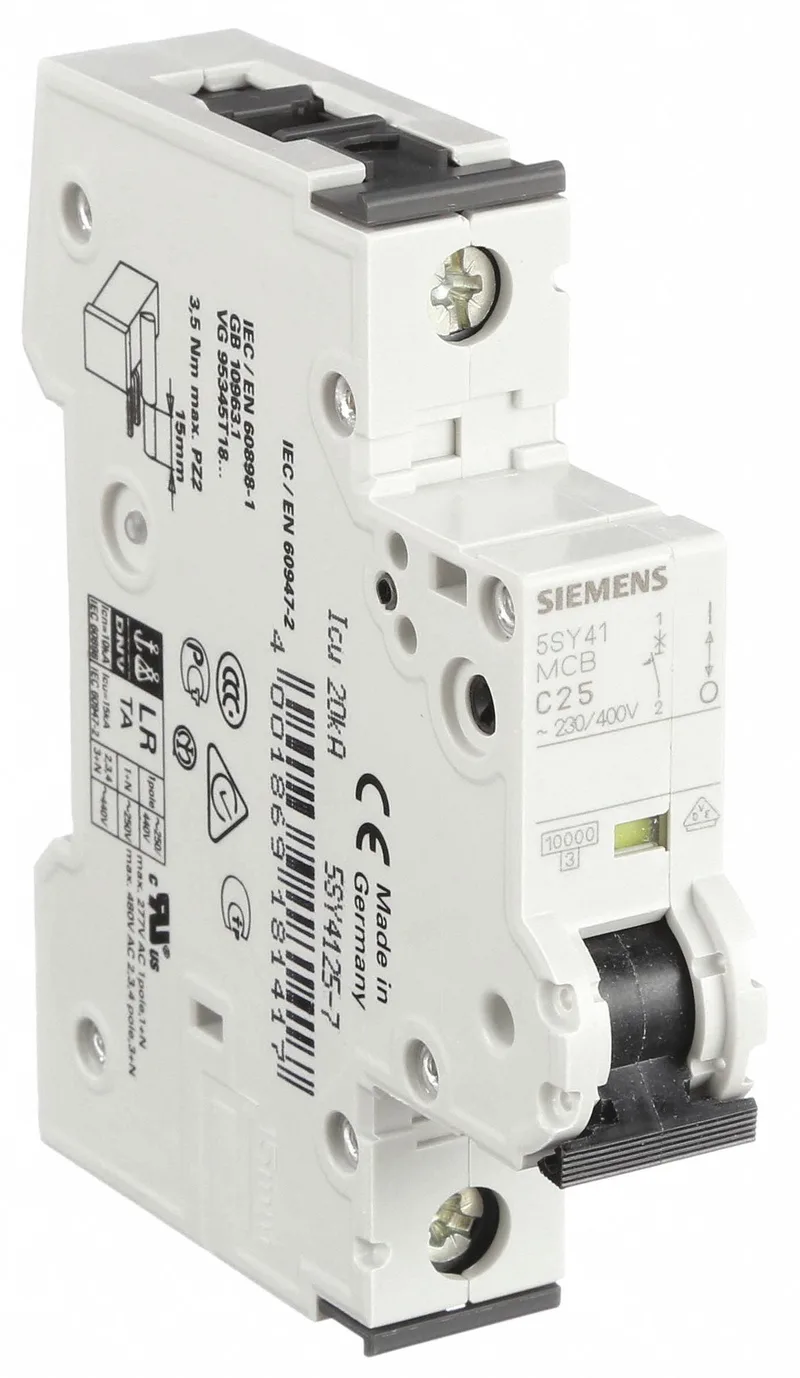

Siemens 5SY4125-7 — 1-Pole MCB (DIN Rail)

Siemens 5SY4125-7 SENTRON MCB, C-Curve, 1P, 10 kA

MPN5SY4125-7
Active

Siemens SENTRON 5SY4125-7, 1-pole C-curve miniature circuit breaker, 10 kA (EN 60898) / 20 kA (IEC 60947-2), 18 mm width, IP20.

$9.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

5SY4125-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityMechanical engineering / industry
5SY4125-7 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Energy limitation class3
Overvoltage categoryIII
5SY4125-7 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodQuick assembly system
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SY4125-7 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

It carries dual ratings: 10 kA breaking capacity per IEC/EN 60898-1 and 20 kA per IEC 60947-2, with a UL 1077 listing at 5 kA for North American acceptance.

For DC circuits, it's rated 15 kA at up to 72 V, so it works in 48 V or 60 V control-power loops. The 440 V AC multi-phase rating means it can be used on 400 V three-phase systems (line-to-line) without derating the voltage.

Where it goes in the panel

The 18 mm width (1 modular unit) keeps the footprint tight. The IP20 rating (with conductors connected) is standard for enclosed gear; it's not meant for washdown zones or outdoors without a cabinet.

Frequently asked questions

Where can I buy 5SY4125-7 and what is the lead time?

We source it through independent distribution and quote to order against an RFQ. Availability and current pricing are confirmed at quote time — no stock count or lead-time number is published here.

What is the difference between 5SY4125-7 and 5SY4140-7?

The 5SY4140-7 is the 40 A version of the same 1-pole C-curve SENTRON MCB. Same 18 mm width, same dual breaking capacity ratings. The only difference is the amp rating — 25 A on the 5SY4125-7 versus 40 A on the sibling. They share the same DIN-rail footprint and terminal layout, so one can drop into a panel specified for the other as long as the load current matches the new rating.

What compliance documentation does Siemens provide for 5SY4125-7?

The breaker is certified to IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077. It is halogen-free and silicon-free. Standard Siemens documentation includes the declaration of conformity and the product datasheet.
