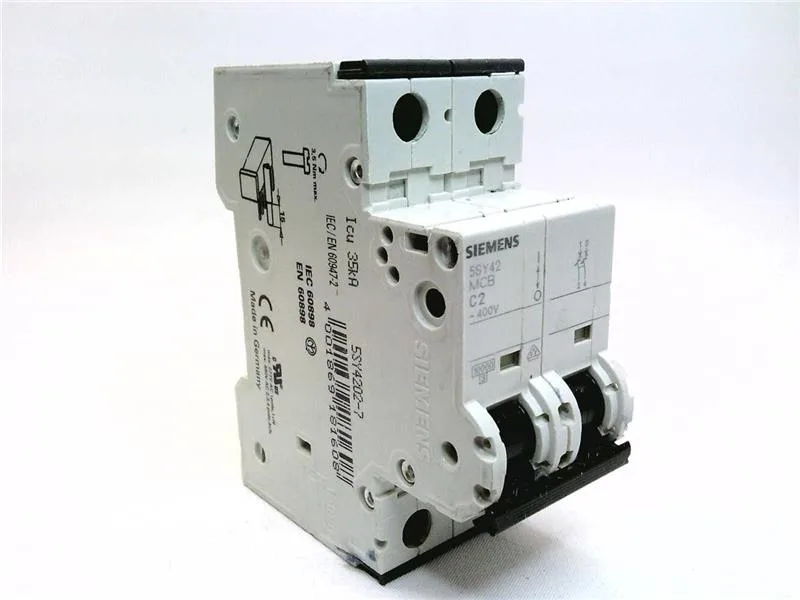

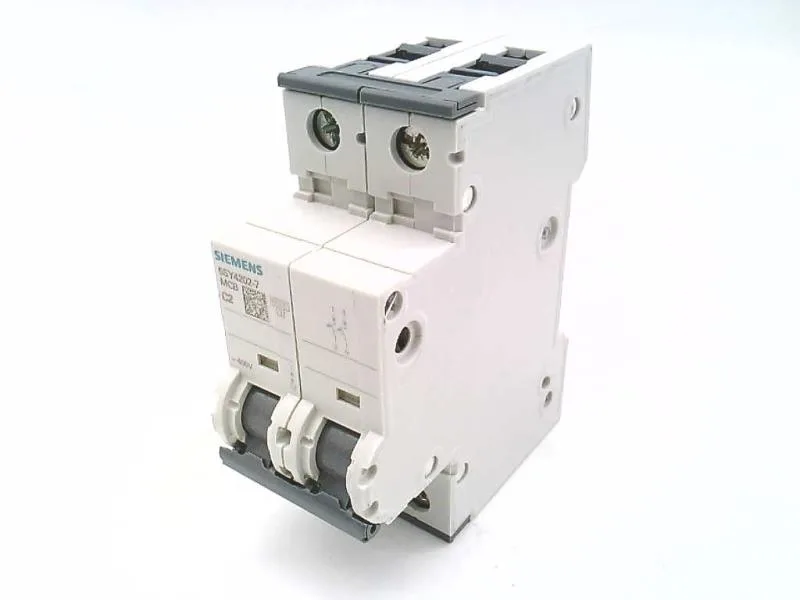

Siemens SENTRON 5SY4202-7, 2-pole miniature circuit breaker, C characteristic, 10 kA (EN 60898-1) / 35 kA (IEC 60947-2), 400 V AC, 60 V DC, width 36 mm (2 MW).
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breaker |
| Brand name | SENTRON |
| Application environment | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 2 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | C |
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Modular width units | 2 |
| Width | 36 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Min. | -40 °C |
| Max. | 75 °C |
| Protection degree (IP) | IP20, with connected conductors |
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| At AC rated value | 400 V |
| According to EN 60898 rated value | 10 kA |
| With single-phase operation at AC rated value | 440 V |
| Energy Limitation Class | 3 |
The DC breaking capacity of 15 kA at up to 72 V DC makes it suitable for DC bus or battery-backed circuits. The 5 kA per UL 1077 and CSA C22.2 No. 235 confirms acceptance in North American supplementary-protection applications.
Width is 36 mm (2 modular-width units) for DIN-rail mounting. The sealable design allows lockout/tagout provisions.
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
2-pole, C-curve, 10 kA (EN 60898-1), 35 kA (IEC 60947-2), 15 kA DC (IEC 60947-2), 400 V AC / 60 V DC rated voltage, 50/60 Hz, width 36 mm.
The breaker is certified to IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 / CSA C22.2 No. 235. It is halogen-free and silicon-free.
