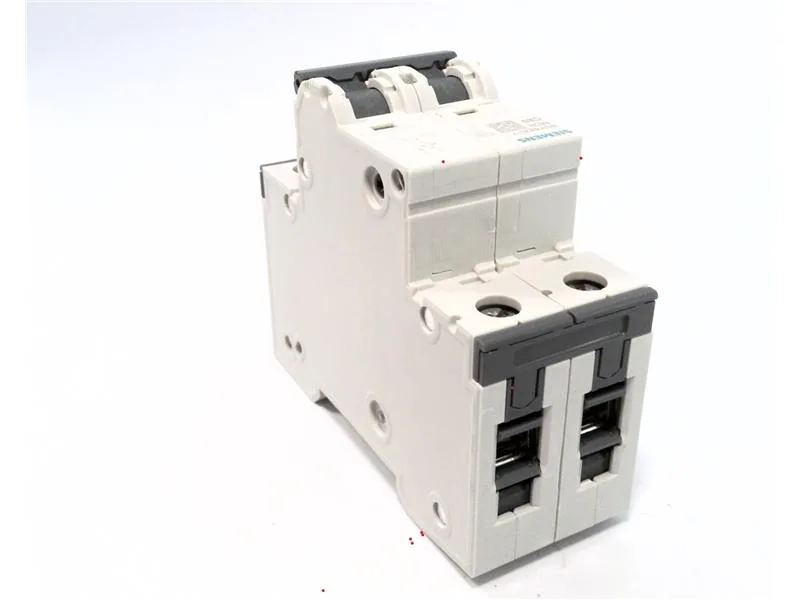

Siemens 5SY4220-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY4220-7 SENTRON MCB, 2P C-curve, 10kA/20kA

MPN5SY4220-7
Active

Siemens SENTRON 5SY4220-7, 2-pole miniature circuit breaker, C tripping characteristic, breaking capacity 10 kA (EN 60898) / 20 kA (IEC 60947-2), 76 mm depth, 36 mm width.

$19.55Ref. price · indicative, final on quote
Siemens 5SY4220-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY4220-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY4220-7 — Electrical
ParameterValue
Number of poles2
5SY4220-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY4220-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY4220-7 — Environmental
ParameterValue
Pollution degree3
5SY4220-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value10 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

Siemens 5SY4220-7 SENTRON MCB – Line-Down or Spec Fill

Breaking capacity covers most industrial panels: 10 kA per EN 60898-1, 20 kA per IEC 60947-2, and 5 kA per UL1077 for North American jobs. That's enough headroom for common fault levels in MCCs and distribution boards.

Environmental and Mounting Notes

Rated -40 to 75 °C ambient. Derate above 55 °C according to the humidity table: 95% RH up to 55 °C, then down to 35% RH at 75 °C. IP20 with conductors connected; sealable enclosure available (listed as 'Sealable: Yes'). Mount in any position. No neutral conductor switching – pure line-side protection.

Certified to IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 (5 kA). Halogen-free and silicon-free construction. Energy limitation class 3.

Frequently asked questions

What certifications does the 5SY4220-7 hold?

It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. Also halogen-free and silicon-free per the spec.

Does this breaker have UL listing?

It is rated 5 kA per UL1077 and CSA C22.2 No.235, which is the standard for supplementary protectors in UL panels.
