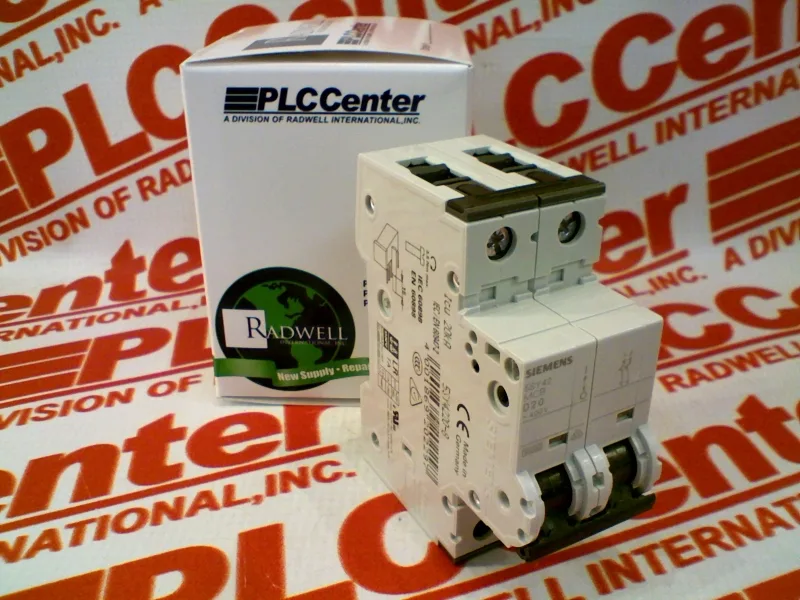

Siemens SENTRON 5SY4220-8, 2-pole miniature circuit breaker, 20 A rated, D tripping characteristic, 36 mm width (2 modular width units).
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breaker |
| Brand name | SENTRON |
| Application environment | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 2 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | D |
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Modular width units | 2 |
| Width | 36 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Min. | -40 °C |
| Max. | 75 °C |
| Protection degree (IP) | IP20, with connected conductors |
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| At AC rated value | 20 A |
| According to EN 60898 rated value | 10 kA |
| With single-phase operation at AC rated value | 440 V |
The 5SY4220-8: The higher IEC 60947-2 figure applies when the MCB is used in an industrial panel with a known prospective fault current; the EN 60898 rating governs residential or commercial distribution boards. Both standards are listed on the same device.
Rated 20 A at 35 °C ambient.
No stock-holding claim; procurement is per BOM quantity.
The applicable rating depends on the installation standard your panel is designed to.
