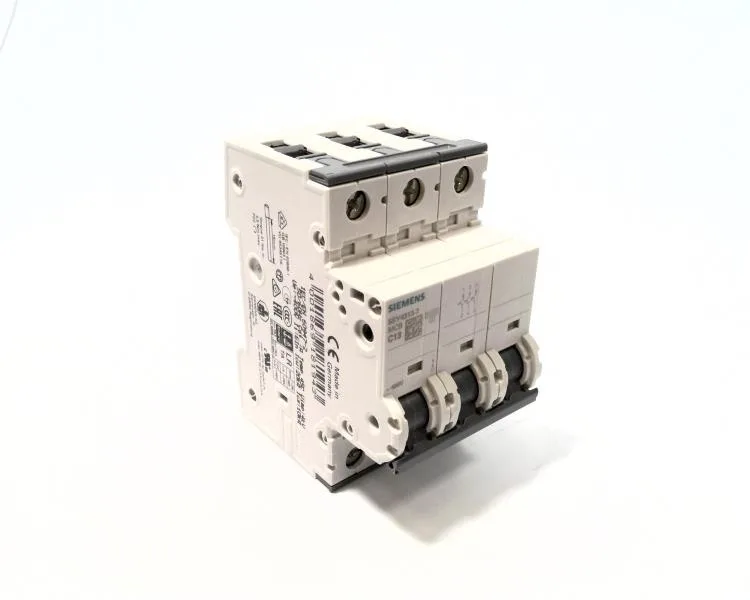

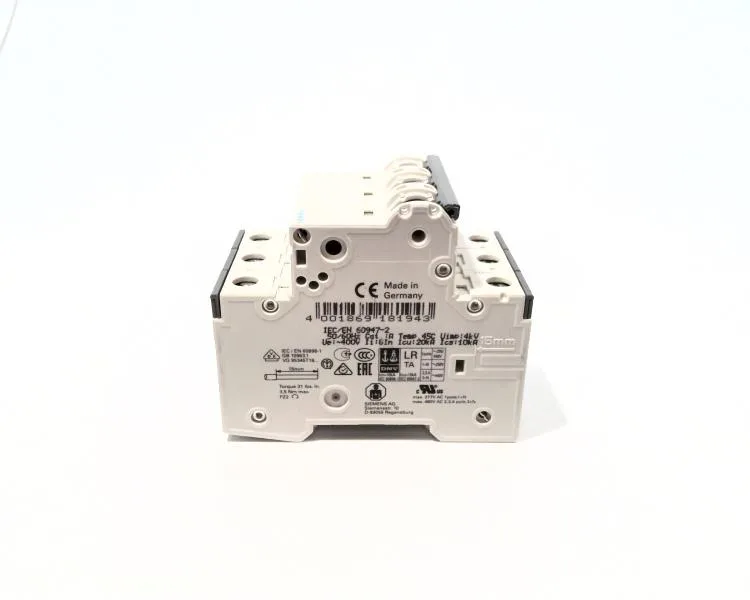

Siemens 5SY4313-7 — 3-Pole MCB (DIN Rail)

Siemens 5SY4313-7 SENTRON 3-Pole MCB, C-Curve, 10 kA

MPN5SY4313-7
Active

Siemens SENTRON 5SY4313-7, 3-pole miniature circuit breaker, C-curve, 10 kA (EN 60898) / 20 kA (IEC 60947-2), 400 V AC, 3 modular width units, DIN-rail mount.

$38.10Ref. price · indicative, final on quote
Siemens 5SY4313-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY4313-7 — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationMechanical engineering / industry
5SY4313-7 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 6089810 kA
Breaking capacity per IEC 60947-220 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Energy limitation class3
Pollution degree3
5SY4313-7 — Electrical
ParameterValue
Rated voltage (AC, multi-phase)440 V
Voltage type (AC/DC)AC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)1.4 W
Mechanical service life (operating cycles, typ.)10 000
Neutral conductor switchingNo
Rated voltage (AC, single-phase)440 V
5SY4313-7 — Mechanical
ParameterValue
Modular width units3
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
Fastening methodQuick assembly system
SealableYes
Accepts supplementary devicesYes
5SY4313-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
Vibration resistance (IEC 60068-2-6)±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz

Product details

Its dual-rated breaking capacity — 10 kA per EN 60898-1 and 20 kA per IEC 60947-2 at 400 V AC — means it handles fault currents up to the higher figure under industrial panel rules, while the lower EN rating applies for residential or commercial distribution boards where the standard governs.

C-curve and load compatibility

The 5SY4313-7 is rated for 400 V AC (440 V with multi-phase operation) and 60 V DC (72 V max), covering standard 3-phase panel voltages and some DC control circuits.

The 5SY4313-7 carries dual certification to IEC/EN 60898-1 and IEC/EN 60947-2, plus UL 1077 and CSA C22.2 No. 235 (5 kA at AC per UL/CSA). This means it qualifies for European distribution boards (EN 60898) and industrial panels (IEC 60947-2), as well as North American supplementary protection applications under UL 1077.

Frequently asked questions

What is the price of Siemens 5SY4313-7?

Buyers need to compare costs across distributors and budget for their BOM.

Is Siemens 5SY4313-7 in stock?

For production timelines, stock availability directly affects lead time and project scheduling.

What are the dimensions of Siemens 5SY4313-7?

Design engineers need to ensure it fits in the panel enclosure.

What is the breaking capacity of Siemens 5SY4313-7?

Critical for verifying the MCB can handle fault currents in the application.

What is the equivalent of Siemens 5SY4313-7?

For cross-referencing or if the exact part is unavailable, buyers need a direct replacement.

Does Siemens 5SY4313-7 comply with UL standards?

Ensures the product meets safety regulations for the intended market.
