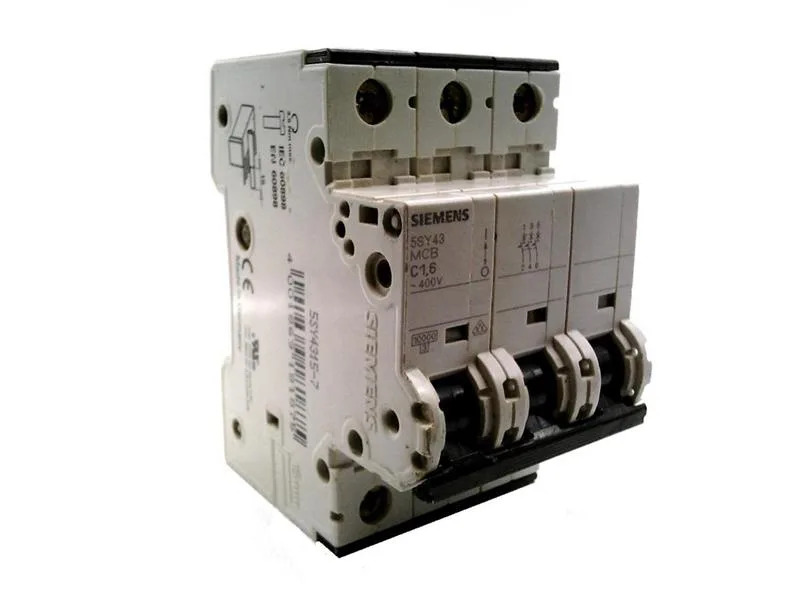

Siemens SENTRON 5SY4315-7, 3-pole miniature circuit breaker, C characteristic, 1.6 A rated current, 35 kA breaking capacity (IEC 60947-2), 10 kA (EN 60898), 3 MW DIN-rail mount.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Suitability for operation | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Breaking capacity per IEC 60947-2 | 35 kA |
| Overvoltage category | III |
| IP protection class | IP20, with connected conductors |
| Energy limitation class | 3 |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Rated current (AC) | 1.6 A |
| Rated voltage (AC, multi-phase) | 440 V |
| Parameter | Value |
|---|---|
| Modular width units | 3 |
| Mounting position | any |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Fastening method | Quick assembly system |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Influence of surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
The 5SY4315-7: The breaker is rated IP20 with connected conductors and includes integrated touch protection on the terminals, which means it can be installed in open panel sections without additional finger-duct covers as long as the wiring is terminated.
The enclosure is halogen-free and silicon-free, which is a requirement for certain clean-room or marine applications where outgassing from the plastic could contaminate sensitive equipment.
