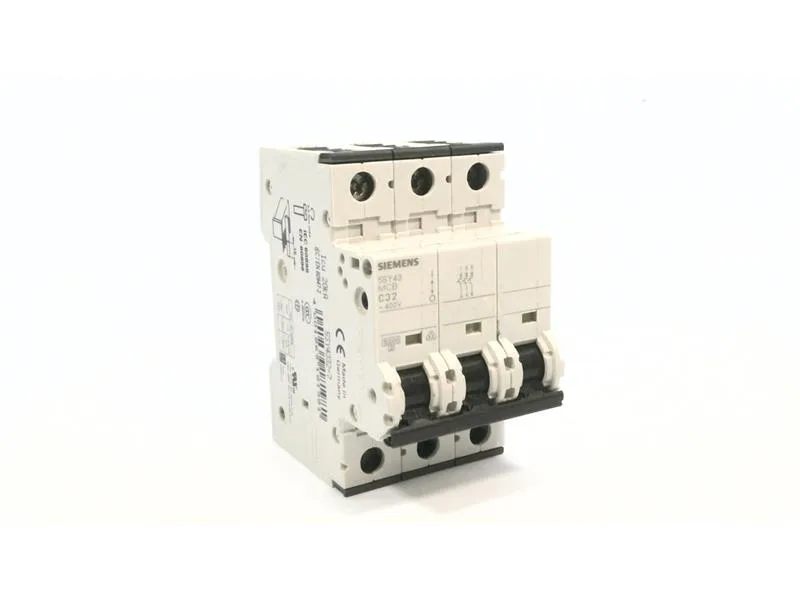

Siemens 5SY4332-7 — 3-Pole MCB (DIN Rail)

Siemens 5SY4332-7 SENTRON MCB, 3P C-Curve, 10kA/20kA

MPN5SY4332-7
Active

Siemens SENTRON 5SY4332-7 miniature circuit breaker, 3-pole, C-curve, 10 kA (EN 60898-1) / 20 kA (IEC 60947-2), 400 V AC, IP20, 3 MW units.

$34.98Ref. price · indicative, final on quote
Siemens 5SY4332-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY4332-7 — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationMechanical engineering / industry
5SY4332-7 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 6089810 kA
Breaking capacity per IEC 60947-220 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Energy limitation class3
Pollution degree3
5SY4332-7 — Electrical
ParameterValue
Rated voltage (AC, multi-phase)440 V
Voltage type (AC/DC)AC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)2.6 W
Mechanical service life (operating cycles, typ.)10 000
Neutral conductor switchingNo
Rated voltage (AC, single-phase)440 V
5SY4332-7 — Mechanical
ParameterValue
Modular width units3
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
Fastening methodQuick assembly system
SealableYes
Accepts supplementary devicesYes
5SY4332-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
Vibration resistance (IEC 60068-2-6)±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz

Product details

The 5SY4332-7: Rated to IEC / EN 60898-1 and IEC / EN 60947-2, plus UL 1077. The dual rating means it qualifies for both residential-distribution (60898-1) and industrial-panel (60947-2) applications — the 20 kA figure under 60947-2 is the one to use for SCCR calculations in industrial control panels. Also carries CSA C22.2 No. 235. Halogen-free and silicon-free construction suits clean-room or sensitive environments.

Mounting position any. Sealable for tamper-proof installations.

Environmental and operating conditions

Humidity influence: max 95% at 55 °C, derating to 55% at 70 °C, 35% at 75 °C. Frequency 50/60 Hz. Suitable for mechanical engineering and industry.

Frequently asked questions

What is the breaking capacity of 5SY4332-7?

10 kA per EN 60898-1, 20 kA per IEC 60947-2 at 400 V AC, and 15 kA at DC per IEC 60947-2.

What is the width of 5SY4332-7?

54 mm, which corresponds to 3 modular width units on a standard DIN rail.

Where can I buy 5SY4332-7?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
