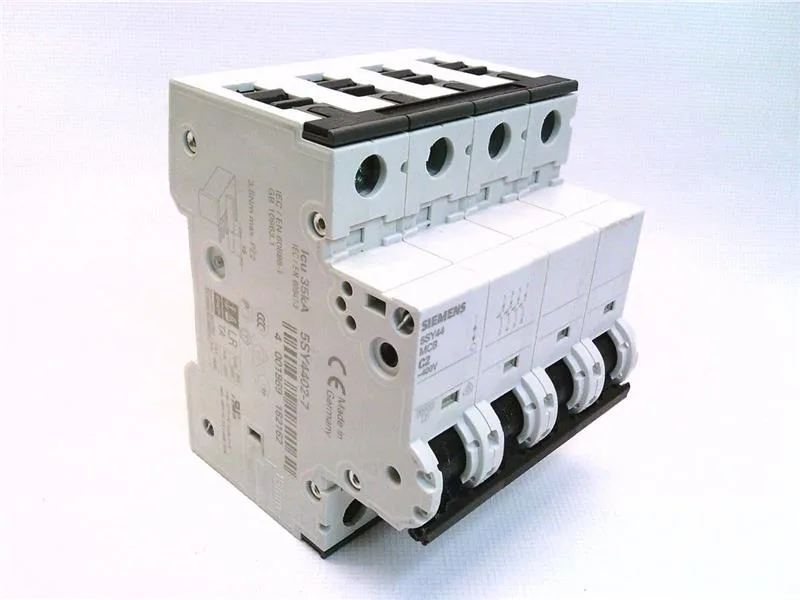

Siemens 5SY4402-7 — 4-Pole MCB (DIN Rail)

Siemens 5SY4402-7 SENTRON MCB, 4P C, 10kA/35kA

MPN5SY4402-7
Active

Siemens SENTRON 5SY4402-7, 4-pole MCB, C-curve, 400 V AC / 60 V DC, 10 kA (EN 60898) / 35 kA (IEC 60947-2), 72 mm wide.

$64.77Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY4402-7 — Identification
ParameterValue
Brand nameSENTRON
Application suitabilityMechanical engineering / industry
5SY4402-7 — Ratings
ParameterValue
Number of poles4
Pole configuration4P
Rated voltage, AC (multi-phase)440 V
5SY4402-7 — Protection
ParameterValue
Tripping characteristic (trip curve)C
Energy limitation class3
Overvoltage categoryIII
Pollution degree3
Degree of protection (IP)IP20, with connected conductors
5SY4402-7 — Mechanical
ParameterValue
Width in modular units4
Width72 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Fastening / mounting methodQuick assembly system
Mounting positionany
Combined terminal, topYes
Combined terminal, bottomYes
Tightening torque, max.75 °C
Tightening torque, min.-40 °C
SealableYes
5SY4402-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of ambient temperature (derating)max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
5SY4402-7 — Performance
ParameterValue
Power loss per pole, AC (hot state, at In)1.2 W

Product details

That makes it a single device that fits into both residential panel schedules and light industrial distribution boards without requalifying the SCCR.

Lifecycle stage is current production. No end-of-life notice or last-time-buy clock; the part is available through standard Siemens distribution channels and can be specified into new BOM lines without a sunset concern.

Installation depth is 70 mm, total depth 76 mm. Width is 72 mm (4 modular units). Mounting position any, with quick assembly system. Terminal tops and bottoms are combined for both cable and busbar connection. Neutral conductor is not switched — the 4th pole is a protected pole, not a switched neutral.

Complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 (5 kA); halogen-free, silicon-free; ambient -40 °C to 75 °C with derating; suitable for mechanical engineering and industry.

Frequently asked questions

What compliance documentation does this part have?

It meets IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA C22.2 No.235. Halogen-free and silicon-free, IP20.
