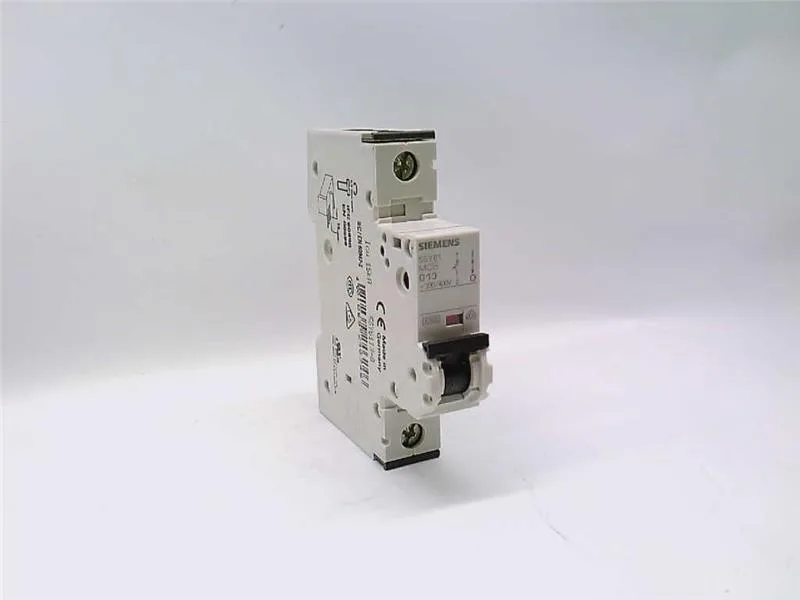

Siemens 5SY6113-8 — 1-Pole MCB (DIN Rail)

Siemens 5SY6113-8 SENTRON MCB, 1P, 13 A, D Curve, 6 kA

MPN5SY6113-8

Siemens SENTRON 5SY6 series miniature circuit breaker, 1-pole, 13 A, D tripping characteristic, 6 kA breaking capacity per EN 60898, 15 kA per IEC 60947-2, 400 V AC.

$22.42Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6113-8 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles1
Application suitabilityMechanical engineering / industry
5SY6113-8 — Electrical & Protection
ParameterValue
Tripping characteristic classD
Rated value (EN 60898)6 kA
Overvoltage categoryIII
5SY6113-8 — Mounting & Connection
ParameterValue
Mounting positionany
Combined terminal, topYes
Combined terminal, bottomYes
Width18 mm
Height90 mm
Depth76 mm
Installation depth70 mm
SealableYes
5SY6113-8 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Halogen-freeYes
Silicone-freeYes

Product details

Breaking capacity is 6 kA per EN 60898 for general distribution and 15 kA per IEC 60947-2 for industrial panel duty; the 15 kA figure gives you headroom on high-fault panels without stepping to a larger frame.

Snaps onto standard DIN rail — 18 mm wide, one width unit. Combined terminal top and bottom means you can feed from either direction without swapping parts. IP20 with conductors connected; sealable for tamper-proofing in accessible panels. Ambient temperature range -25 to +55 °C operating, -40 to +75 °C storage.

Frequently asked questions

What is the breaking capacity of 5SY6113-8?

6 kA per EN 60898 for general distribution, and 15 kA per IEC 60947-2 for industrial panel duty. The 15 kA figure is the one to use for SCCR coordination in UL 508A panels.

Where can I buy 5SY6113-8?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock count or lead-time number is published here.

Will 5SY6113-8 drop into a panel specified around 5SY6140-6CC without rewiring?

Both are 1-pole SENTRON 5SY6 breakers with the same 18 mm width and DIN-rail footprint, so mechanical fit is identical. The 5SY6140-6CC is a 40 A D-curve; the 5SY6113-8 is 13 A. If the panel's busbar and load wiring are sized for 40 A, dropping in a 13 A breaker is fine — the reverse (40 A into a 13 A circuit) would require rewiring and a coordination check.
