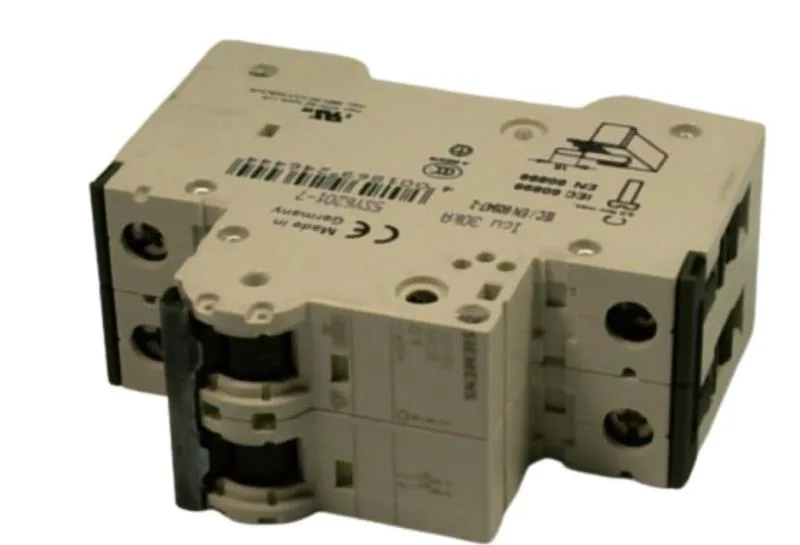

Siemens 5SY6201-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY6201-7 SENTRON MCB, 2-pole C-curve, 6kA/30kA

MPN5SY6201-7
Active

Siemens SENTRON 5SY6201-7, 2-pole miniature circuit breaker, C-curve, 6 kA per EN 60898-1 / 30 kA per IEC 60947-2, 400 V AC.

$30.48Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6201-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY6201-7 — Electrical
ParameterValue
Number of poles2
5SY6201-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY6201-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY6201-7 — Environmental
ParameterValue
Pollution degree3
5SY6201-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value6 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

It's rated for 6 kA breaking capacity under EN 60898-1 and 30 kA under IEC 60947-2, with a 15 kA DC rating per IEC 60947-2. The operating voltage is 400 V AC (single- or multi-phase) and up to 72 V DC.

The C-curve (trips at 5–10x rated current) is the standard for general-purpose motor and lighting circuits where inrush isn't extreme. The 6 kA EN rating covers most domestic and light commercial panels; the 30 kA IEC rating gives headroom for industrial distribution where fault currents are higher. The 15 kA DC rating at 60 V means it's usable in DC control circuits, but watch the voltage — the DC max is 72 V, so it won't cover a 110 V DC bus. The 2-pole design switches both phases but does not switch the neutral.

The terminals are combined (top and bottom), and the unit is sealable. Halogen-free and silicon-free construction.

Frequently asked questions

What is the width and depth of the 5SY6201-7?

Width is 36 mm (2 modular units), depth is 76 mm, installation depth is 70 mm.

What standards does the 5SY6201-7 comply with?

It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077/CSA C22.2 No.235.
