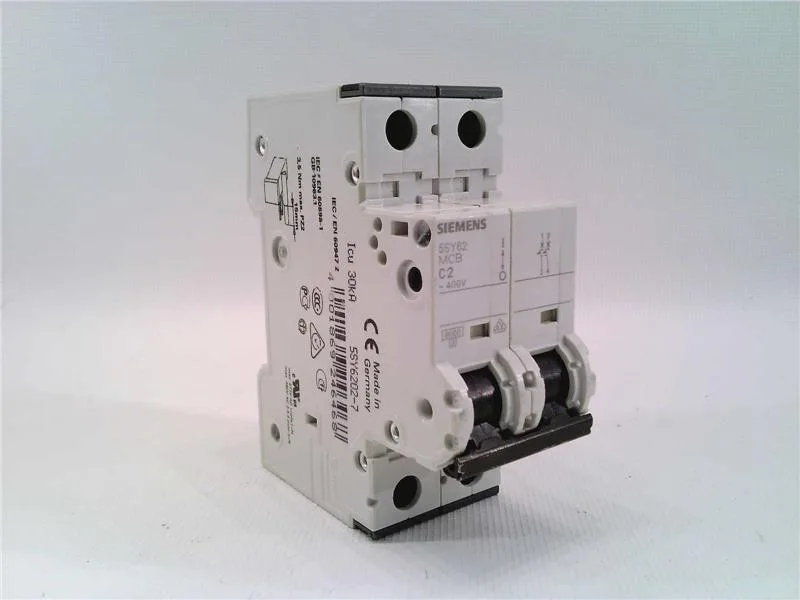

Siemens 5SY6202-7 — 2-Pole MCB (DIN Rail)

SENTRON 5SY6202-7 Miniature Circuit Breaker, 2P, C-Curve, 6k

MPN5SY6202-7
Active

SENTRON 5SY6202-7, 2-pole miniature circuit breaker, C-characteristic, 6 kA (EN 60898-1) / 30 kA (IEC 60947-2), 400 V AC, width 36 mm.

$30.48Ref. price · indicative, final on quote
Siemens 5SY6202-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6202-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY6202-7 — Electrical
ParameterValue
Number of poles2
5SY6202-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY6202-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY6202-7 — Environmental
ParameterValue
Pollution degree3
5SY6202-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value6 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

It occupies two modular width units (36 mm) and is rated for AC operation at 400 V (single- or multi-phase) and DC at 60 V (72 V max).

The 5SY6202-7 carries a dual breaking-capacity rating: 6 kA per EN 60898-1 for standard household/commercial installations, and 30 kA per IEC 60947-2 for industrial applications where higher fault currents are expected. For DC circuits, it is rated 15 kA per IEC 60947-2, and under UL 1077 / CSA C22.2 No. 235 it holds 5 kA. The housing is rated IP20 with conductors connected, meaning finger-safe but not protected against moisture ingress. The breaker is sealable and mounts in any position, with a quick-assembly fastening system for DIN-rail installation.

Frequently asked questions

What compliance standards does this breaker meet?

It is certified to IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077. The product is halogen-free and silicon-free.

What is the physical size and mounting?

The breaker is 36 mm wide (2 modular units), 90 mm high, and 76 mm deep. It mounts on DIN rail in any position, with an installation depth of 70 mm.
