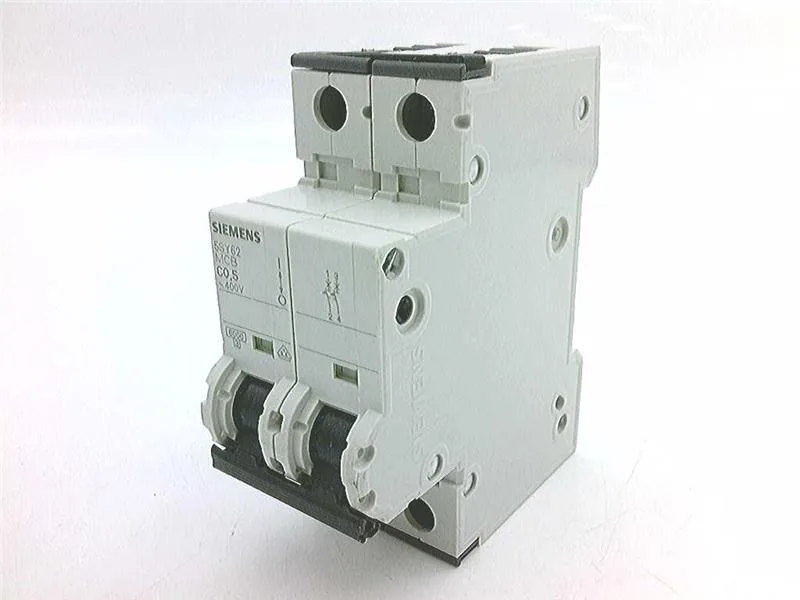

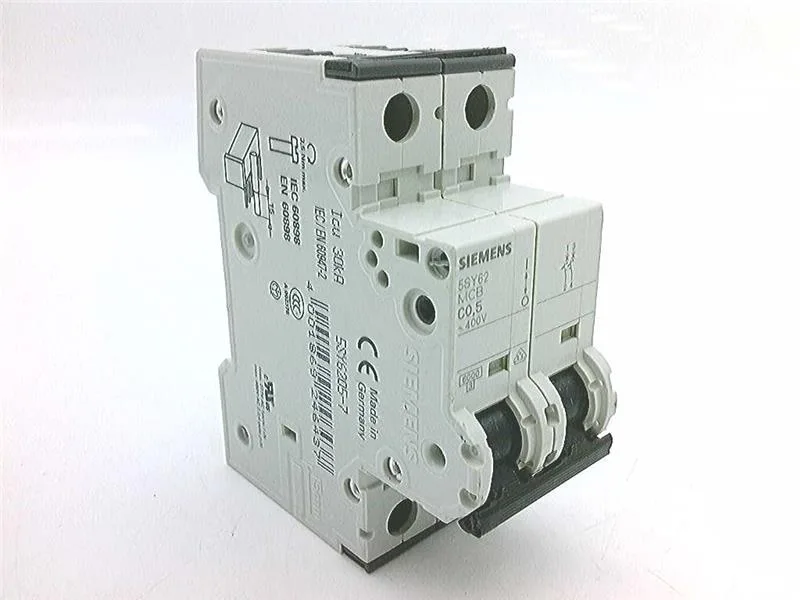

Siemens 5SY6205-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY6205-7 SENTRON MCB, 2P C-Curve, 6kA/30kA, 76mm de

MPN5SY6205-7
Active

Siemens SENTRON 5SY6205-7, 2-pole miniature circuit breaker, C-curve, 6 kA (EN 60898-1) / 30 kA (IEC 60947-2), 400 V AC, 2 MW, 76 mm depth.

$90.17Ref. price · indicative, final on quote
Siemens 5SY6205-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6205-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY6205-7 — Electrical
ParameterValue
Number of poles2
5SY6205-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY6205-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY6205-7 — Environmental
ParameterValue
Pollution degree3
5SY6205-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value6 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

The quick-assembly fastening system and any-position mounting simplify rail placement in crowded enclosures.

Vibration resistance per IEC 60068-2-6 (±1 mm at 5–25 Hz, 50 m/s² at 25–150 Hz) and mechanical endurance of 10 000 operating cycles typical. Compliant with IEC / EN 60898-1 and IEC / EN 60947-2, plus UL 1077 and CSA C22.2 No. 235 (5 kA at AC). The dual-standard marking means it carries both the domestic and industrial certifications, covering panel builds destined for European, North American, and Canadian sites.

Frequently asked questions

What compliance documentation does Siemens provide for 5SY6205-7?

The breaker is certified to IEC / EN 60898-1, IEC / EN 60947-2, UL 1077, and CSA C22.2 No. 235. It is halogen-free and silicon-free. Standard RoHS/REACH declarations are available from Siemens documentation.

Where can I buy 5SY6205-7 and how is it quoted?

The part is sourced to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead-time estimate.

Will 5SY6205-7 drop into a panel specified around 5SY5240-7 without rewiring?

Both are 2-pole SENTRON MCBs with the same 36 mm width and DIN-rail mounting, so the mechanical fit is identical. The 5SY6205-7 has a higher breaking capacity (30 kA vs the 5SY5240-7's typical 10 kA per IEC 60947-2), so it can replace the lower-rated unit without rewiring as long as the cable and busbar ratings are adequate for the higher fault current.
