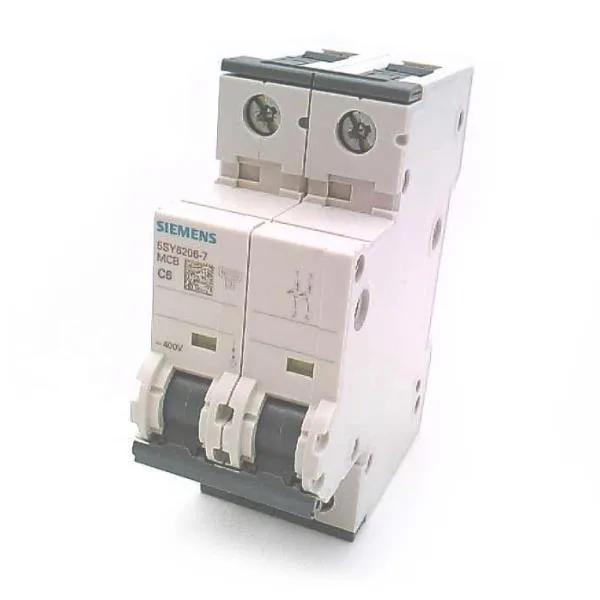

Siemens 5SY6206-7 — 2-Pole MCB (DIN Rail)

Siemens SENTRON 5SY6206-7 MCB, 2P C-Curve, 6kA/30kA

MPN5SY6206-7
Active

Siemens SENTRON 5SY6206-7, miniature circuit breaker, 2-pole, C-curve, 6 kA (EN 60898-1) / 30 kA (IEC 60947-2), 400 V AC, 2 MW.

$10.67Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6206-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY6206-7 — Electrical
ParameterValue
Number of poles2
5SY6206-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY6206-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY6206-7 — Environmental
ParameterValue
Pollution degree3
5SY6206-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value6 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

It carries a 6 kA breaking capacity per EN 60898-1 and 30 kA per IEC 60947-2 — the higher IEC figure governs the fault-interruption capability when the part is applied under that standard, so for industrial panel designs specified to IEC 60947-2 you get a full 30 kA SCCR at 400 V.

The 2 MW (36 mm) width means it occupies two 18 mm modular units. Combined terminal top and bottom — line and load can enter from either end. The neutral conductor is not switched (2-pole but both poles are phase, no switched neutral). Ambient temperature range -40 °C to 75 °C, with derating above 55 °C: max 95% RH at 55 °C, 55% at 70 °C, 35% at 75 °C. Suitability marked for mechanical engineering and industry — standard industrial panel environment.

Frequently asked questions

What is the closest functional second-source to the 5SY6206-7?

The Siemens 5SL4363-7 is a direct functional equivalent: same 2-pole C-curve, same 6 kA / 30 kA breaking capacity, same 2 MW width. The housing design differs (SY vs SL) but the DIN-rail footprint, terminal layout, and ratings are interchangeable. No rewiring required for a swap.

What compliance documentation does the 5SY6206-7 carry?

The part is certified to IEC / EN 60898-1, IEC / EN 60947-2, UL 1077, and CSA C22.2 No. 235. It is halogen-free and silicon-free. Pollution degree 3, overvoltage category III. The UL 1077 listing is as a supplementary protector, not a UL 489 branch-circuit breaker.
