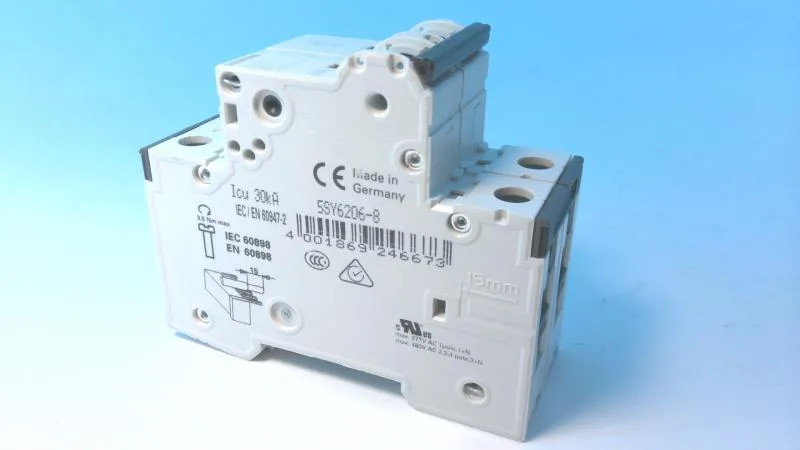

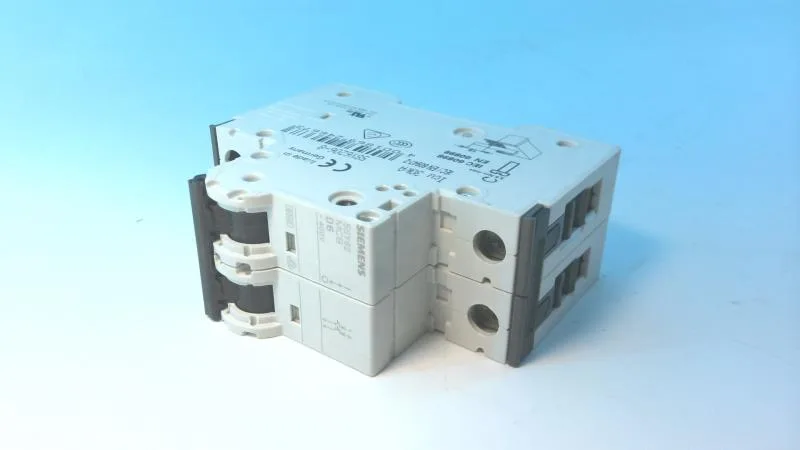

Siemens SENTRON 5SY6 series, miniature circuit breaker, 2-pole, D tripping characteristic, 6 A rated current, 400 V AC, 6 kA (EN 60898) / 30 kA (IEC 60947-2).
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breaker |
| Brand name | SENTRON |
| Application environment | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 2 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | D |
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Width | 36 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Min. | -40 °C |
| Max. | 75 °C |
| Protection degree (IP) | IP20, with connected conductors |
At DC it handles 72 V max with a 15 kA interrupting rating (IEC 60947-2). UL 1077 / CSA C22.2 No. 235 recognition at 5 kA covers North American acceptance.
Any mounting position works, and the housing is IP20 with connected conductors. Sealable, halogen-free, silicon-free. Overvoltage category III, touch protection included.
The overall depth is 76 mm, with an installation depth of 70 mm.
The width is 36 mm, which corresponds to 2 width units on a standard DIN rail.
