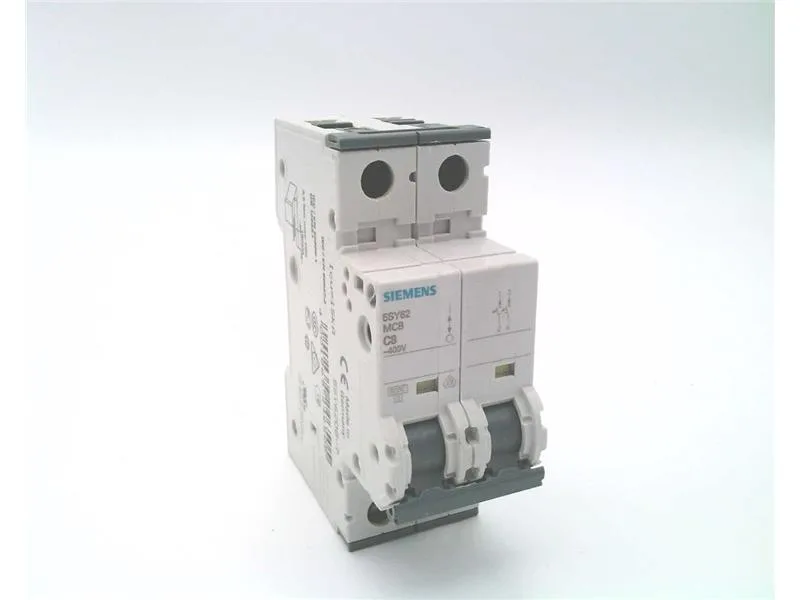

Siemens 5SY6208-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY6208-7 SENTRON MCB, 2P, C-curve, 6kA/15kA

MPN5SY6208-7
Active

Siemens SENTRON 5SY6208-7 miniature circuit breaker, 2-pole, C-trip characteristic, 6 kA (EN 60898-1) / 15 kA (IEC 60947-2), 400 V AC / 60 V DC.

$54.61 – $139.76Ref. price · indicative, final on quote
Siemens 5SY6208-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6208-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY6208-7 — Electrical
ParameterValue
Number of poles2
5SY6208-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY6208-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY6208-7 — Environmental
ParameterValue
Pollution degree3
5SY6208-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value6 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

The Siemens 5SY6208-7 is a 2-pole SENTRON miniature circuit breaker with a C-trip characteristic, rated for 6 kA breaking capacity per EN 60898-1 and 15 kA per IEC 60947-2. It handles 400 V AC (single- or multi-phase) and 60 V DC (max 72 V DC).

Physical fit & mounting

The 5SY6208-7 occupies 2 modular width units (36 mm wide) on a DIN rail, with a depth of 76 mm and an installation depth of 70 mm. Height is 90 mm. Mounting position is any orientation. The quick-assembly fastening system and combined top/bottom terminals simplify panel wiring.

Compliance & environment

Rated for ambient temperatures from -40 °C to 75 °C, with derating above 55 °C (95% RH at 55 °C, 55% at 70 °C, 35% at 75 °C). Halogen-free and silicon-free construction. Meets IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 standards. The DC breaking capacity per IEC 60947-2 is 15 kA at 60 V DC; UL 1077 AC rating is 5 kA.

Frequently asked questions

What is the physical size of the 5SY6208-7?

Width 36 mm (2 modular units), depth 76 mm, installation depth 70 mm, height 90 mm.

What compliance documentation is available?

The breaker is certified to IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077. It is halogen-free and silicon-free.
