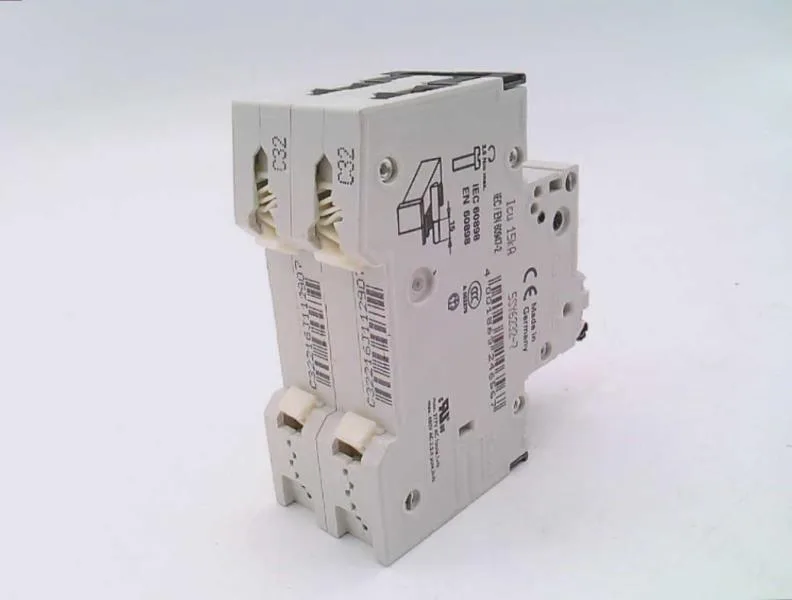

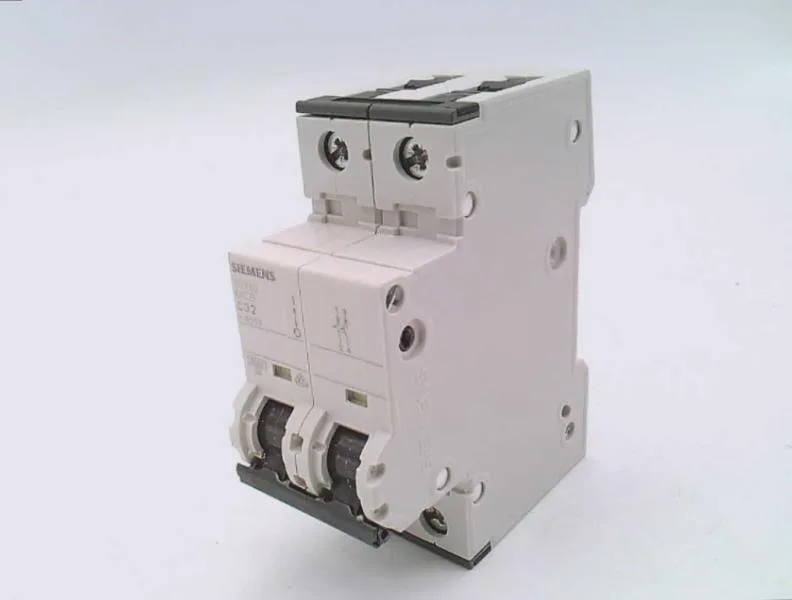

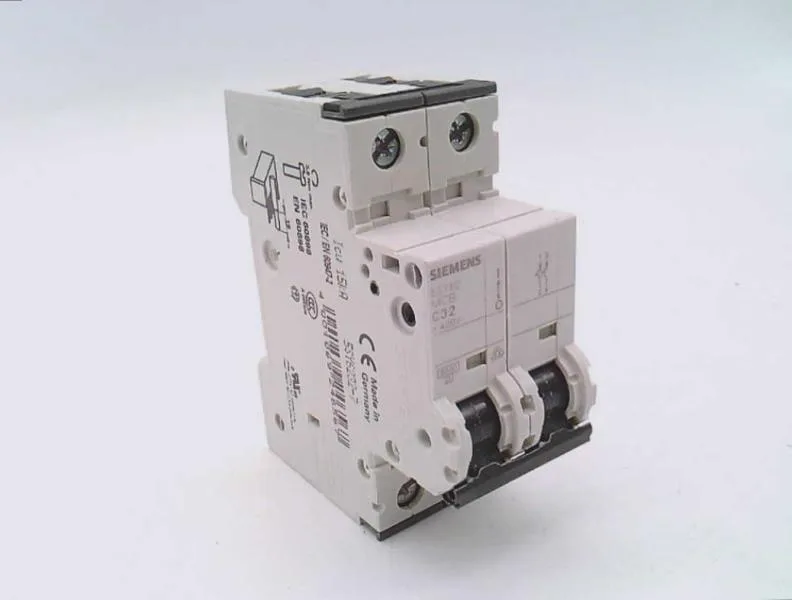

Siemens 5SY6232-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY6232-7 SENTRON MCB, 2P C-curve, 6kA/15kA

MPN5SY6232-7

Active

Siemens SENTRON 5SY6232-7, 2-pole miniature circuit breaker, C-curve, 6 kA (EN 60898-1) / 15 kA (IEC 60947-2), 400 V AC, 60 V DC.

$13.97Ref. price · indicative, final on quote

Add to RFQ

Siemens 5SY6232-7 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6232-7 — Identification
Parameter	Value
Product designation	Miniature circuit breaker
Brand name	SENTRON
Application environment	Mechanical engineering / industry

5SY6232-7 — Electrical
Parameter	Value
Number of poles	2

5SY6232-7 — Protection
Parameter	Value
Tripping characteristic class	C
Overvoltage category	III

5SY6232-7 — Mechanical
Parameter	Value
Modular width units	2
Width	36 mm
Height	90 mm
Depth	76 mm
Installation depth	70 mm
Mounting position	any
Min.	-40 °C
Max.	75 °C
Protection degree (IP)	IP20, with connected conductors

5SY6232-7 — Environmental
Parameter	Value
Pollution degree	3

5SY6232-7 — Specifications
Parameter	Value
At AC rated value	400 V
According to EN 60898 rated value	6 kA
With single-phase operation at AC rated value	440 V
Energy Limitation Class	3

Product details

The 6 kA EN 60898-1 rating covers domestic and light commercial panels; the 15 kA IEC 60947-2 rating qualifies it for industrial distribution boards where higher fault currents are expected. The UL 1077 supplementary protector listing at 5 kA means it can serve as a branch-circuit component in North American panels that accept UL 1077 devices. The 2-pole design switches both phase conductors but does not switch the neutral, so it fits single-phase or split-phase circuits where neutral is common.

Integration notes

Mounting position is any. The quick assembly system and combined terminals top and bottom simplify busbar and wire connections. Sealable allows lockout/tagout compliance.
