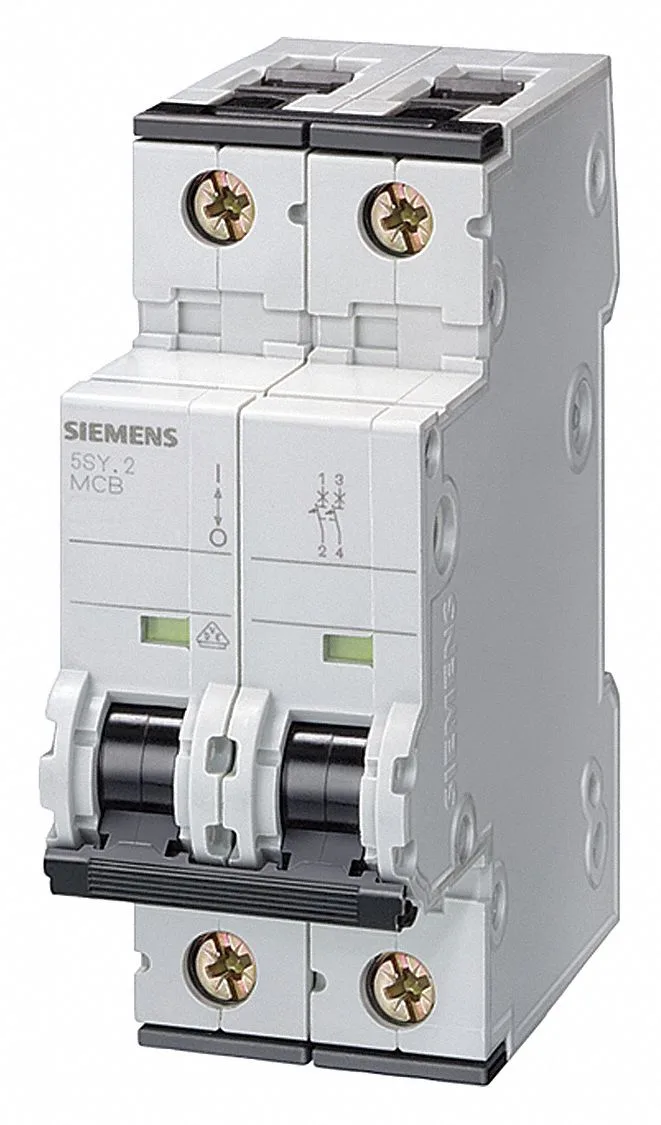

Siemens SENTRON 5SY6263-6, 2-pole miniature circuit breaker, 63 A, B-characteristic, 6 kA / 10 kA, 36 mm wide.
| Parameter | Value |
|---|---|
| Product designation | Miniature circuit breaker |
| Brand name | SENTRON |
| Application environment | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 2 |
| Parameter | Value |
|---|---|
| Tripping characteristic class | B |
| Overvoltage category | III |
| Parameter | Value |
|---|---|
| Modular width units | 2 |
| Width | 36 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Min. | -40 °C |
| Max. | 75 °C |
| Protection degree (IP) | IP20, with connected conductors |
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Energy Limitation Class | 3 |
The 5SY6263-6: Quick-assembly system clips onto DIN rail without tools. Combined top and bottom terminals allow straight-through wiring; the terminals accept conductors for feed-through. IP20 rating with conductors connected, pollution degree 3 for control cabinet use. Halogen- and silicon-free construction reduces corrosion risk in sealed enclosures. Any mounting position and any supply side orientation.
Current production; sourced to order.
It complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL1077. The part is also halogen- and silicon-free.
