Siemens 5SY6302-7 — Miniature Circuit Breakers (MCB)

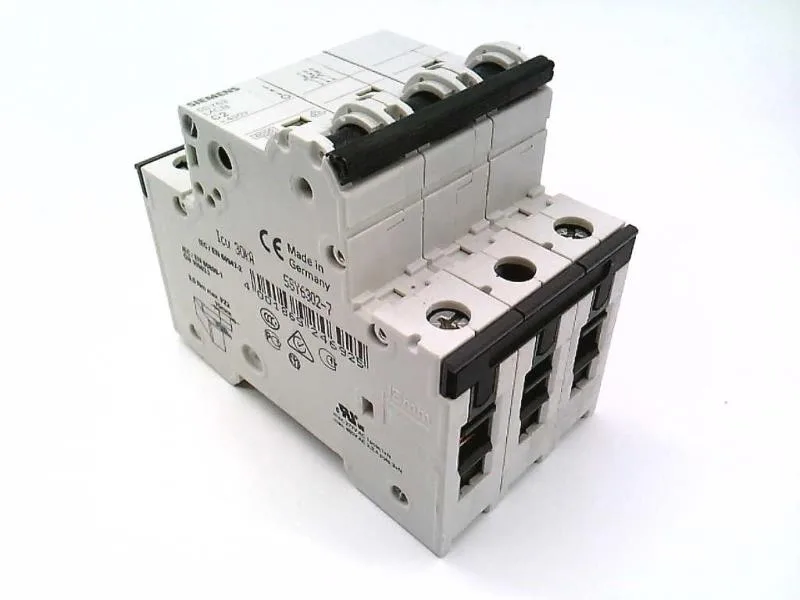

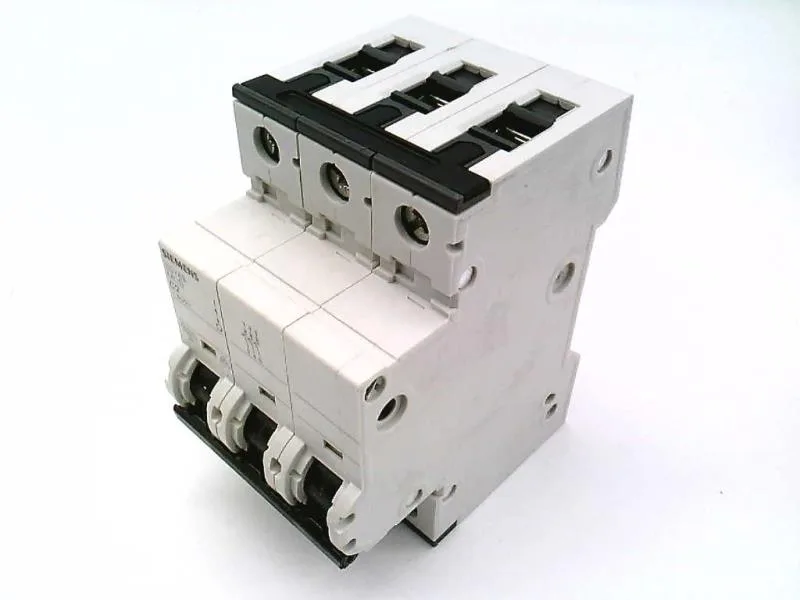

Siemens 5SY6302-7 SENTRON MCB, 3P C-2A, 6kA/30kA

MPN5SY6302-7
Active

Siemens SENTRON 5SY6302-7 miniature circuit breaker, 3-pole, C-curve, 2 A rated, dual breaking capacity 6 kA (EN 60898) / 30 kA (IEC 60947-2).

$26.29Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

5SY6302-7 — Ratings
ParameterValue
Overvoltage categoryIII
5SY6302-7 — Mechanical
ParameterValue
Width54 mm
Height90 mm
Depth76 mm

Product details

It's built for panel-mounted overcurrent and short-circuit protection in industrial control cabinets, mechanical engineering, and general distribution.

Breaking capacity — what the dual rating means

For DC circuits, the breaker is rated 15 kA at 60 V per IEC 60947-2 — useful if you're protecting a 60 VDC control bus or a battery-backed circuit in the same enclosure.

Thermal derating — don't ignore it

The 2 A rating holds at 35 °C ambient. At 40 °C it drops to 1.9 A, at 45 °C to 1.85 A, at 50 °C to 1.8 A, and at 55 °C to 1.75 A.

Mounting position any, so you can lay it sideways in a shallow gland plate if needed. IP20 with conductors connected — fine inside a closed panel; not for wet or washdown zones. Pollution degree 3, overvoltage category III, so it's rated for the transient environment of a fixed industrial installation.

Frequently asked questions

Where can I buy 5SY6302-7 and how do I get a price?

The part is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

What is 5SY6302-7's listed depth (76 mm) on this component line?

The depth is 76 mm; installation depth is 70 mm.

What is 5SY6302-7's listed width (54 mm) on this component line?

The width is 54 mm, which corresponds to 3 modular width units on a DIN rail.

Will 5SY6302-7 drop into a panel that was specified around 5SY4140-7 without rewiring?

Both are 3-pole SENTRON MCBs on the same DIN-rail footprint, so the mechanical fit is the same. But the 5SY4140-7 has a different current rating and possibly a different breaking capacity — verify the load and fault level before swapping.

What compliance documentation does this brand provide for 5SY6302-7 (RoHS, REACH, UL, IEC)?

The breaker is certified to IEC/EN 60898-1 and IEC/EN 60947-2 / UL1077. It is halogen-free and silicon-free, which supports RoHS and REACH compliance.
