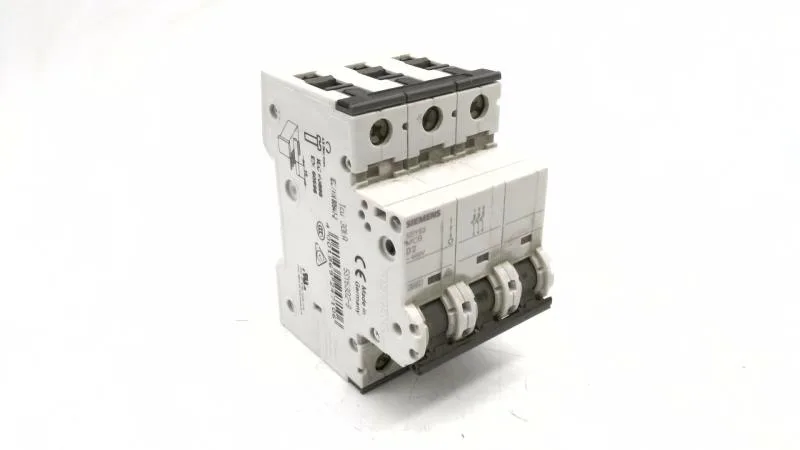

Siemens 5SY6302-8 — 3-Pole MCB (DIN Rail)

Siemens SENTRON 5SY6302-8 MCB, 3-pole D-curve, 2 A, 6 kA

MPN5SY6302-8

Siemens SENTRON 5SY6 series miniature circuit breaker, 3-pole, D tripping characteristic, 2 A rated current, 400 V AC, 6 kA (EN 60898) / 30 kA (IEC 60947-2).

$133.22Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6302-8 — Identification
ParameterValue
Design / model code5SY6
Brand nameSENTRON
Number of poles3
Suitability for operationMechanical engineering / industry
5SY6302-8 — Protection
ParameterValue
Tripping characteristic (curve)D
Breaking capacity per EN 608986 kA
Breaking capacity per IEC 60947-230 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
5SY6302-8 — Electrical
ParameterValue
Rated current (AC)400 V
Rated voltage (AC, multi-phase)440 V
Rated frequency50/60 Hz
5SY6302-8 — Mechanical
ParameterValue
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
SealableYes
5SY6302-8 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C

Product details

The Siemens SENTRON 5SY6302-8 is a 3-pole miniature circuit breaker (MCB) with a D tripping characteristic, rated at 2 A at 400 V AC. It breaks 6 kA per EN 60898 for general distribution panels and 30 kA per IEC 60947-2 for industrial feeder duty, so you can use it in a sub-distribution board or a machine control cabinet without worrying about the fault level.

The 3-pole body takes 3 width units (54 mm wide), and the 76 mm depth leaves room for wiring behind a shallow enclosure door. Any mounting position works, and the terminals accept top and bottom combined feed, so you can loop the supply through without extra busbars.

The D-curve trips magnetically between 10× and 20× In, so at 2 A the magnetic trip threshold is 20–40 A. That keeps it from dropping out on a motor start or a capacitive load surge. The 6 kA breaking capacity under EN 60898 covers most commercial and light-industrial panels; if your transformer-fed board has a higher prospective fault current, the 30 kA rating under IEC 60947-2 gives you the headroom without changing the breaker footprint. For DC circuits, it's rated up to 72 V — fine for control-voltage loops or small DC drives.

Halogen-free and silicon-free construction, so it won't outgas corrosive compounds in a sealed enclosure or near sensitive contacts.

Frequently asked questions

Where can I buy the 5SY6302-8?

Sourced to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time — submit an RFQ for a firm lead time and price.

Will the 5SY6302-8 drop into a panel wired for a 5SY4140-7?

Both are 3-pole SENTRON MCBs on the same DIN-rail footprint, so the mechanical swap is straightforward. The 5SY6302-8 is a D-curve 2 A breaker; the 5SY4140-7 is a B-curve 40 A breaker — different tripping characteristic and current rating, so check your load and selectivity study before swapping.

What compliance documentation does Siemens provide for the 5SY6302-8?

The part carries EN 60898 and IEC 60947-2 ratings, plus UL 1077 and CSA C22.2 No. 235 (5 kA at AC). It is halogen-free and silicon-free. Standard Siemens declarations for RoHS and REACH are available on request.
