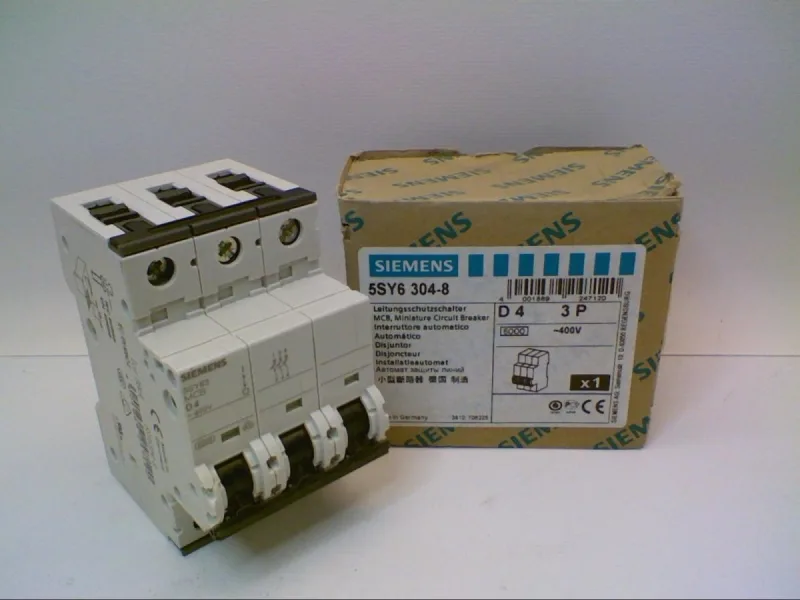

Siemens 5SY6304-8 — 3-Pole MCB (DIN Rail)

Siemens 5SY6304-8 SENTRON MCB, 3P D 4A, 6kA/30kA

MPN5SY6304-8

Siemens SENTRON 5SY6 series, miniature circuit breaker, 3-pole, D tripping characteristic, 4 A rated current, 6 kA (EN 60898) / 30 kA (IEC 60947-2), 76 mm depth.

$65.48Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6304-8 — Identification
ParameterValue
Design / model code5SY6
Brand nameSENTRON
Number of poles3
Suitability for operationMechanical engineering / industry
5SY6304-8 — Protection
ParameterValue
Tripping characteristic (curve)D
Breaking capacity per EN 608986 kA
Breaking capacity per IEC 60947-230 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Pollution degree3
5SY6304-8 — Electrical
ParameterValue
Rated current (AC)400 V
Rated voltage (AC, multi-phase)440 V
Rated frequency50/60 Hz
5SY6304-8 — Mechanical
ParameterValue
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
SealableYes
5SY6304-8 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C

Product details

The Siemens 5SY6304-8 is a SENTRON 5SY6 miniature circuit breaker, 3 poles, D-curve, rated 4 A at 400 V AC. This is the high inrush version — D characteristic means it holds through motor start and transformer energisation without nuisance tripping, so it's the right call for inductive loads in mechanical engineering and industry. For UL 1077 / CSA C22.2 No.235 installations it's rated 5 kA. Occupies 3 width units (54 mm).

Mounting position any, so orientation in the panel doesn't restrict airflow or cable routing. Combined terminal top and bottom — line and load can enter from either end, which speeds up wiring in a crowded enclosure. Sealable cover option allows the breaker to be locked out after commissioning.

Frequently asked questions

What is the physical size of the 5SY6304-8?

3 width units (54 mm wide), 76 mm depth, 90 mm height. Installation depth is 70 mm.
