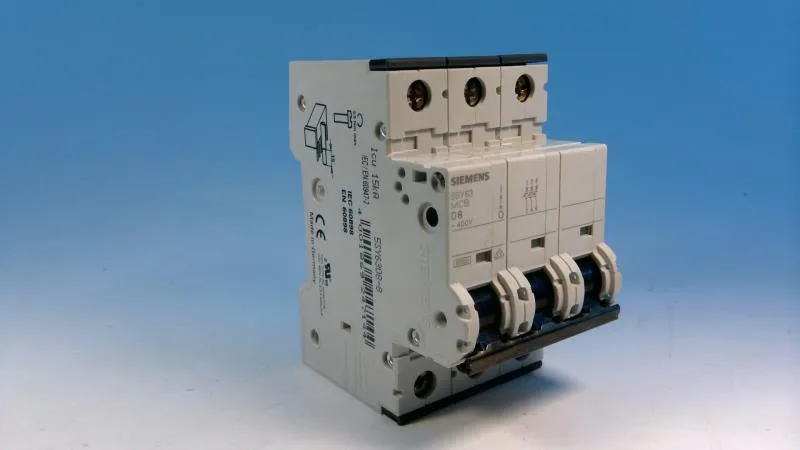

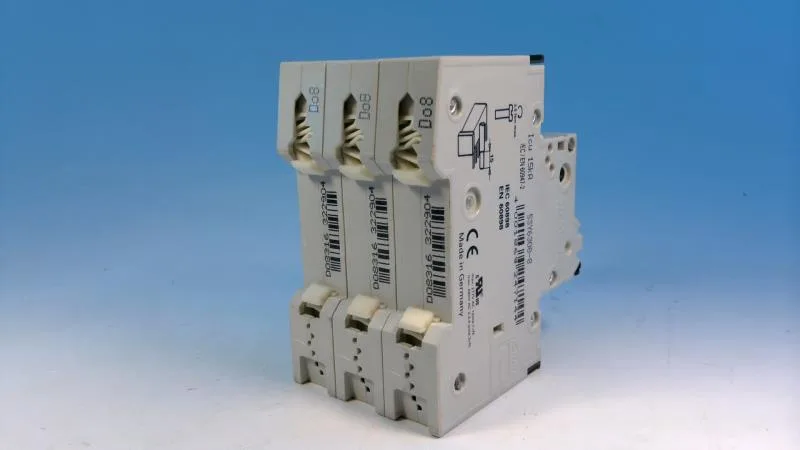

Siemens 5SY6308-8 — 3-Pole MCB (DIN Rail)

Siemens 5SY6308-8 SENTRON MCB, 3P D 8A, 6/15 kA

MPN5SY6308-8

Siemens SENTRON 5SY6 series, 3-pole miniature circuit breaker, D tripping characteristic, 8 A rated current, 400 V AC, 6 kA (EN 60898) / 15 kA (IEC 60947-2).

$91.55Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6308-8 — Identification
ParameterValue
Design / model code5SY6
Brand nameSENTRON
Number of poles3
Suitability for operationMechanical engineering / industry
5SY6308-8 — Protection
ParameterValue
Tripping characteristic (curve)D
Breaking capacity per EN 608986 kA
Breaking capacity per IEC 60947-215 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
5SY6308-8 — Electrical
ParameterValue
Rated current (AC)400 V
Rated voltage (AC, multi-phase)440 V
Rated frequency50/60 Hz
5SY6308-8 — Mechanical
ParameterValue
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Combined terminal, topYes
Combined terminal, bottomYes
SealableYes
5SY6308-8 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C

Product details

The Siemens 5SY6308-8 is a 3-pole SENTRON miniature circuit breaker with a D tripping characteristic rated at 8 A and 400 V AC. The 6 kA breaking capacity per EN 60898 covers most residential and light commercial panelboards; the 15 kA per IEC 60947-2 gives headroom for industrial distribution where fault currents run higher. The 5 kA UL 1077 / CSA C22.2 No. 235 rating means it's accepted for North American supplementary protection applications, though it's not a branch-circuit rated UL 489 device.

Occupies 3 width units (54 mm). Accepts solid or stranded copper from 0.75 mm² up to 35 mm², which covers everything from control-circuit tails to feeder-sized conductors. Combined terminals top and bottom simplify busbar or daisy-chain wiring. IP20 with conductors connected; install in any orientation, and the sealable cover allows lockout/tagout on the panel door.

Frequently asked questions

What is the breaking capacity of 5SY6308-8?

6 kA per EN 60898, 15 kA per IEC 60947-2, and 5 kA per UL 1077 / CSA C22.2 No. 235.

Where can I buy the 5SY6308-8?

This part is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time.

Will 5SY6308-8 drop into a panel specified around 5SY6613-8?

Both are 3-pole SENTRON MCBs on the same DIN-rail footprint, but the 5SY6613-8 is a higher-current variant (13 A). The 5SY6308-8 will physically fit the same mounting and busbar arrangement, but verify the load current and coordination study before swapping — the D-curve and breaking capacities are similar, but the ampacity differs.

MPN
5SY6308-8
