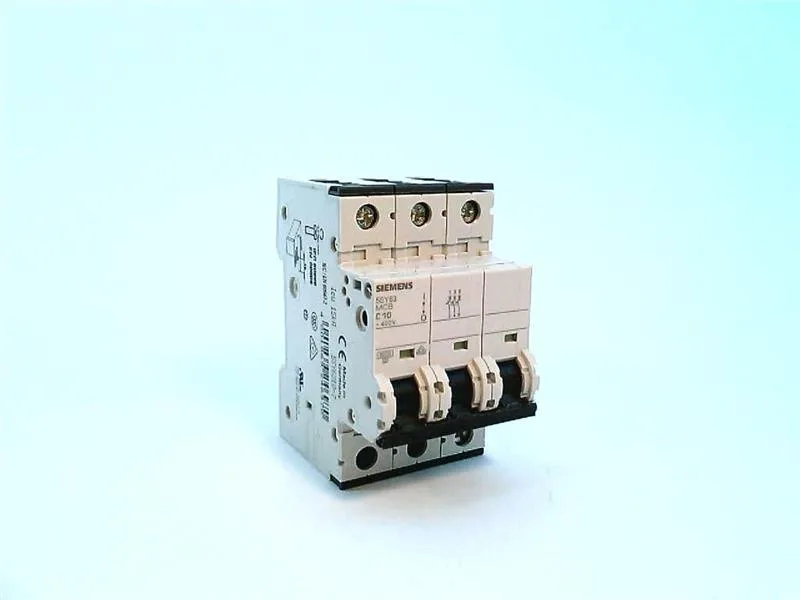

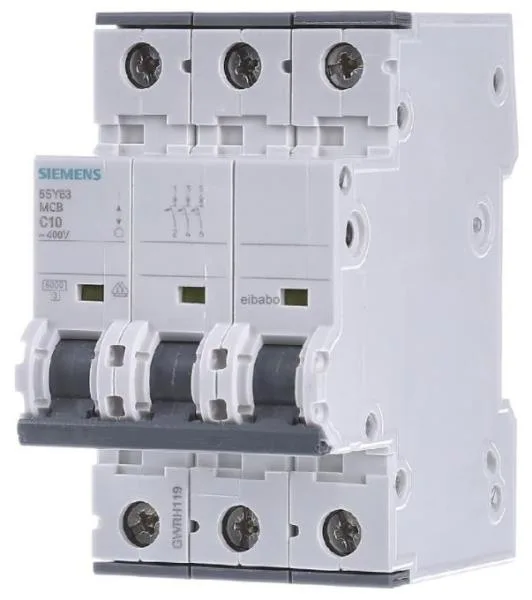

Siemens 5SY6310-7 — 3-Pole MCB (DIN Rail)

Siemens 5SY6310-7 SENTRON MCB, 3P C-Curve, 6/15 kA

MPN5SY6310-7
Active

Siemens SENTRON 5SY6310-7, 3-pole miniature circuit breaker, C-curve, 6 kA per EN 60898 / 15 kA per IEC 60947-2, 400 V AC, 3 modular width units.

$14.81Ref. price · indicative, final on quote
Siemens 5SY6310-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6310-7 — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationMechanical engineering / industry
5SY6310-7 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per EN 608986 kA
Breaking capacity per IEC 60947-215 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Energy limitation class3
Pollution degree3
5SY6310-7 — Electrical
ParameterValue
Rated voltage (AC, multi-phase)440 V
Voltage type (AC/DC)AC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)1.1 W
Mechanical service life (operating cycles, typ.)10 000
Neutral conductor switchingNo
Rated voltage (AC, single-phase)440 V
5SY6310-7 — Mechanical
ParameterValue
Modular width units3
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
Fastening methodQuick assembly system
SealableYes
Accepts supplementary devicesYes
5SY6310-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
Vibration resistance (IEC 60068-2-6)±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz

Product details

At 400 V AC rated voltage, this breaker handles 3-phase line-to-line circuits common across European 400/230 V networks.

Deployment context

Mounting position is unrestricted — vertical, horizontal, or inverted — which helps when panel layout is tight. The sealable design allows the panel builder to lock the toggle position after commissioning, preventing unauthorized reset during maintenance.

Temperature and environmental range

Rated for ambient operation from -40 °C to 75 °C, with humidity derating above 55 °C (95% RH at 55 °C, tapering to 35% RH at 75 °C).

Frequently asked questions

How do I get current pricing and availability for 5SY6310-7?

This part is sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ to confirm current pricing and availability at quote time.

What compliance documentation does the 5SY6310-7 carry?

Certified to IEC / EN 60898-1, IEC / EN 60947-2, and UL 1077 / CSA C22.2 No.235. Halogen-free and silicon-free. The sealable toggle and IP20 rating are documented on the nameplate.

Will 5SY6310-7 drop into a panel specified around 5SY4101-7CV without rewiring?

Both are 3-pole SENTRON MCBs in the same 3-module-width footprint (54 mm), so the mechanical fit is identical. The 5SY6310-7 carries a C-curve and higher breaking capacities (6/15 kA vs the 5SY4101-7CV's ratings), so verify the trip characteristic and fault level match the panel design before substitution.
