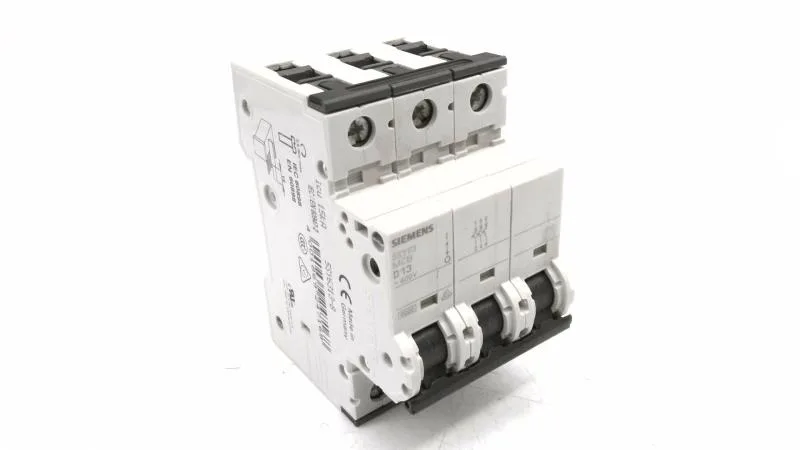

Siemens 5SY6313-8 — 3-Pole MCB (DIN Rail)

Siemens 5SY6313-8 SENTRON MCB, 3P 13A D-Curve, 6/15 kA

MPN5SY6313-8

Siemens SENTRON 5SY6 series, 5SY6313-8 miniature circuit breaker, 3-pole, 13 A, D tripping characteristic, 6 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC.

$77.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6313-8 — Identification
ParameterValue
Design / model code5SY6
Brand nameSENTRON
Number of poles3
Suitability for operationMechanical engineering / industry
5SY6313-8 — Protection
ParameterValue
Tripping characteristic (curve)D
Breaking capacity per EN 608986 kA
Breaking capacity per IEC 60947-215 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
5SY6313-8 — Electrical
ParameterValue
Rated current (AC)400 V
Rated voltage (AC, multi-phase)440 V
Rated frequency50/60 Hz
5SY6313-8 — Mechanical
ParameterValue
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Combined terminal, topYes
Combined terminal, bottomYes
SealableYes
5SY6313-8 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C

Product details

Siemens 5SY6313-8 SENTRON MCB — 13 A, D-Curve, 3-Pole

It is designed for 400 V AC systems and carries a breaking capacity of 6 kA per EN 60898 and 15 kA per IEC 60947-2, with a 5 kA interrupting rating under UL 1077 / CSA C22.2 No.235. The 15 kA breaking capacity under IEC 60947-2 gives headroom for industrial panels with higher available fault current than a standard 6 kA residential-grade MCB would handle.

Occupies 3 width units (54 mm). Mounting position any. Sealable, touch-protected per IP20 with connected conductors.

Halogen-free and silicon-free construction. Humidity tolerance: max 95% at 55 °C, derating to 35% at 75 °C. Overvoltage category III. Suitable for mechanical engineering and industry applications per the manufacturer's designation.

Frequently asked questions

What is the breaking capacity of the 5SY6313-8?

6 kA per EN 60898, 15 kA per IEC 60947-2, and 5 kA per UL 1077 / CSA C22.2 No.235.

What wire sizes does the 5SY6313-8 accept?

Solid and stranded conductors from 0.75 to 35 mm².

Where can I buy the 5SY6313-8?

Sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.
