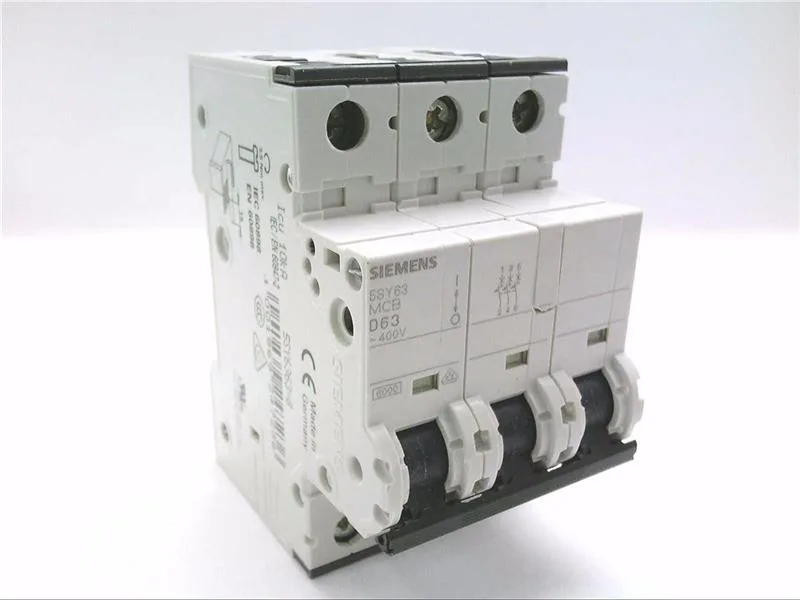

Siemens SENTRON 5SY6 series, miniature circuit breaker, 5SY6363-8, 3-pole, D tripping characteristic, 63 A rated current, 400 V AC, 10 kA breaking capacity per IEC 60947-2.
| Parameter | Value |
|---|---|
| Design / model code | 5SY6 |
| Brand name | SENTRON |
| Number of poles | 3 |
| Suitability for operation | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | D |
| Breaking capacity per EN 60898 | 6 kA |
| Breaking capacity per IEC 60947-2 | 10 kA |
| Overvoltage category | III |
| IP protection class | IP20, with connected conductors |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Rated current (AC) | 400 V |
| Rated voltage (AC, multi-phase) | 440 V |
| Rated frequency | 50/60 Hz |
| Parameter | Value |
|---|---|
| Mounting position | any |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Influence of surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
The Siemens 5SY6363-8 is a 3-pole miniature circuit breaker from the SENTRON 5SY6 family, rated 63 A at 400 V AC with a D tripping characteristic.
The 5SY6363-8 carries two breaking-capacity ratings: 6 kA under EN 60898 (the residential / light commercial standard) and 10 kA under IEC 60947-2 (the industrial standard). The UL 1077 / CSA C22.2 No.235 rating is 5 kA, which covers North American supplementary-protection applications.
The part is sourced to order through independent distribution. Submit an RFQ; availability and current pricing are confirmed at quote time.
The overall depth is 76 mm; the installation depth (behind the panel face) is 70 mm.
The width is 54 mm, which corresponds to 3 standard DIN-rail module units (18 mm per module).
Both are 3-pole SENTRON MCBs on the same DIN-rail footprint, but the 5SY4140-7 is a B-curve 40 A unit. The 5SY6363-8 is D-curve 63 A — different tripping characteristic and current rating. Mechanical fit is the same; electrical substitution requires a coordination check.
