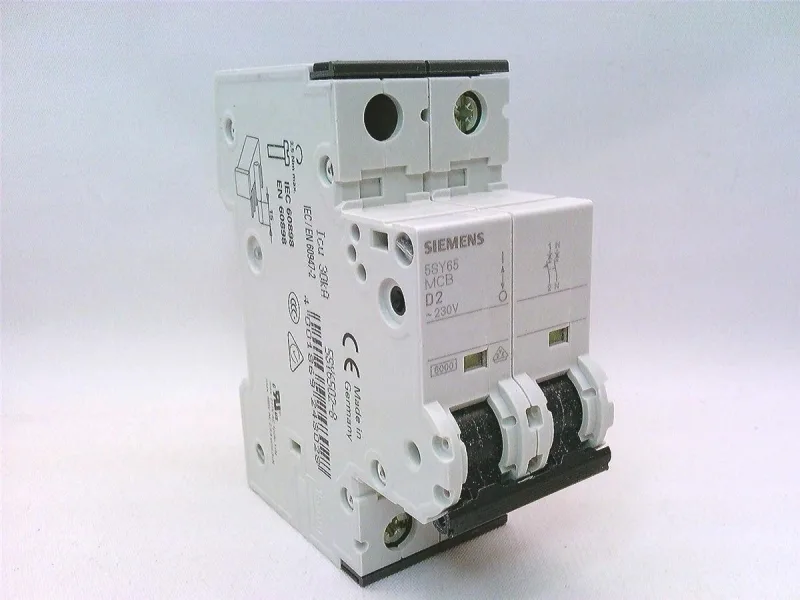

Siemens 5SY6502-8 — 1-Pole MCB (DIN Rail)

Siemens 5SY6502-8 SENTRON MCB, 2 A D-curve, 1P+N, 6 kA

MPN5SY6502-8

Siemens SENTRON 5SY6 series, miniature circuit breaker, 5SY6502-8, 2 A rated, D tripping characteristic, 1P+N, 6 kA (EN 60898), 30 kA (IEC 60947-2).

$75.35Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY6502-8 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles2
Application suitabilityMechanical engineering / industry
5SY6502-8 — Electrical & Protection
ParameterValue
Tripping characteristic classD
Rated value (EN 60898)6 kA
Overvoltage categoryIII
5SY6502-8 — Mounting & Connection
ParameterValue
Mounting positionany
Combined terminal, topYes
Combined terminal, bottomYes
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SY6502-8 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

At 2 A, it protects a small motor or control transformer drawing roughly 0.5 kW on a 230 V single-phase line. Neutral conductor switching is integrated, so no separate neutral bar is needed downstream for the protected circuit.

Approvals include IEC 60898 (6 kA), IEC 60947-2 (30 kA), and UL 1077 / CSA C22.2 No. 235 (5 kA). The UL/CSA listing at 5 kA covers North American supplementary protection applications — not branch circuit protection per UL 489, but suitable for control panels and OEM equipment.

DIN-rail snap-on mounting, any position. The sealable feature allows lockout/tagout without removing the breaker.

Frequently asked questions

Where can I buy 5SY6502-8 and get current pricing?

The 5SY6502-8 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What compliance documentation does Siemens provide for 5SY6502-8?

The breaker carries IEC 60898, IEC 60947-2, and UL 1077 / CSA C22.2 No. 235 approvals. It is halogen-free and silicon-free. Standard Siemens documentation includes RoHS and REACH declarations, plus the CE and UKCA marks for European and UK markets.
