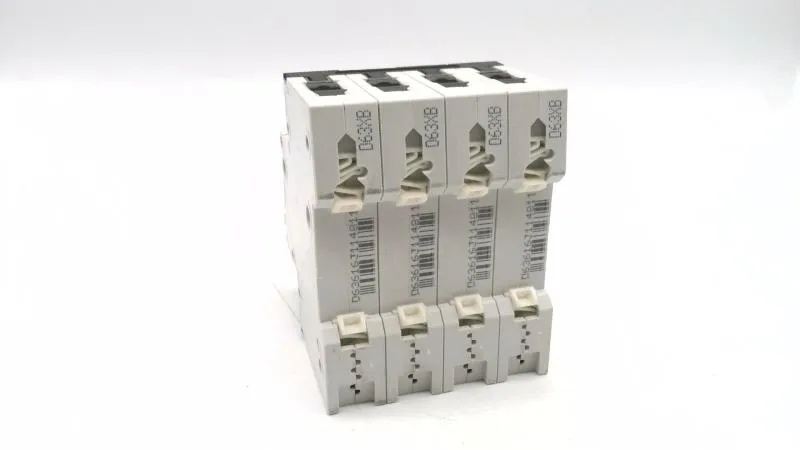

Siemens SENTRON 5SY6 series miniature circuit breaker, 5SY6663-8, 63 A, D tripping characteristic, 4-pole (3P+N), 400 V AC, 10 kA IEC 60947-2, 6 kA EN 60898, 72 mm wide, IP20.
| Parameter | Value |
|---|---|
| Type / order code | 5SY6 |
| Brand name | SENTRON |
| Application suitability | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Number of poles | 4 |
| Pole configuration | 3P+N |
| Rated current (In), AC | 400 V |
| Rated current (In), AC | 63 A |
| Rated voltage, AC (multi-phase) | 440 V |
| Rated voltage, AC (single-phase) | 440 V |
| Rated voltage, DC (max.) | 72 V |
| Voltage type | AC |
| Rated frequency | 50/60 Hz |
| Parameter | Value |
|---|---|
| Tripping characteristic (trip curve) | D |
| Rated breaking capacity (Icn), per EN 60898 | 6 kA |
| Rated breaking capacity, per IEC 60947-2 | 10 kA |
| Breaking capacity, AC (UL 1077 / CSA C22.2 No.235) | 5 kA |
| Overvoltage category | III |
| Degree of protection (IP) | IP20, with connected conductors |
| Neutral conductor switching | Yes |
| Touch protection | Yes |
| Parameter | Value |
|---|---|
| Width in modular units | 4 |
| Width | 72 mm |
| Height | 90 mm |
| Depth | 76 mm |
| Installation depth | 70 mm |
| Mounting position | any |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Sealable | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Influence of ambient temperature (derating) | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| Parameter | Value |
|---|---|
| Mechanical service life (switching cycles, typ.) | 10 000 |
The Siemens SENTRON 5SY6663-8 is a 4-pole (3P+N) miniature circuit breaker rated 63 A with a D tripping characteristic, designed for 400 V AC industrial and mechanical engineering panels.
Snaps onto DIN rail via the quick assembly system — 4 width units (72 mm wide, 90 mm tall, 76 mm deep) with 70 mm installation depth. IP20 with conductors connected; any mounting position works, and the -25 to +55 °C ambient range covers most unventilated enclosures.
Submit an RFQ through this listing. Pricing and stock are confirmed at quote time via our independent distribution network — no live figures on the page.
76 mm, with an installation depth of 70 mm. The overall dimensions are 72 mm wide by 90 mm tall.
Solid and stranded conductors from 0.75 to 35 mm² at both top and bottom combined terminals.
The MCB carries IEC 60947-2 (10 kA), EN 60898 (6 kA), and UL 1077 / CSA C22.2 No.235 (5 kA) ratings. It is halogen-free and silicon-free. Standard Siemens declarations (CE, UKCA) apply; specific RoHS/REACH declarations available on request.
The 5SY4140-7 is a 4-pole SENTRON MCB but rated 40 A with a B curve — lower current and different trip characteristic. It will not drop into the same slot without recalculating the branch protection and coordination study. For a 63 A D-curve replacement, the 5SY6663-8 is the correct order code.
