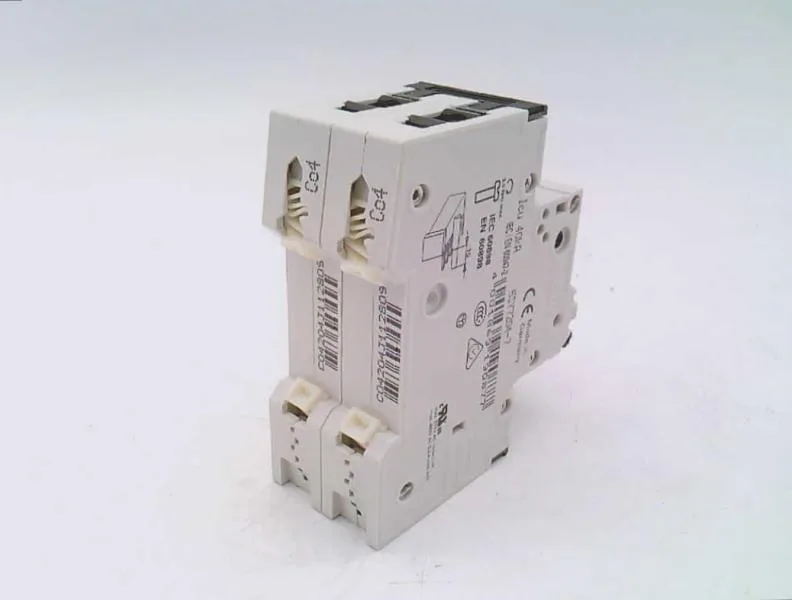

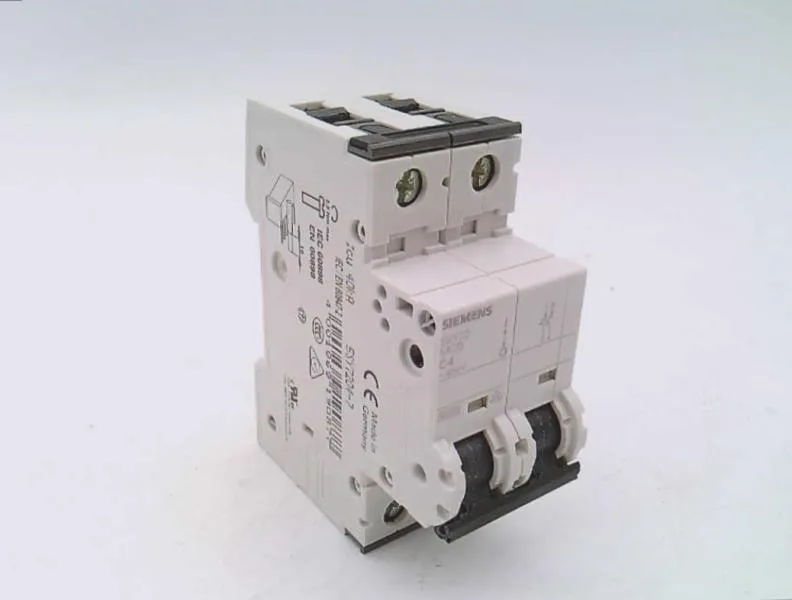

Siemens 5SY7204-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY7204-7 SENTRON MCB, 2P C-Char, 15kA IEC, 40kA IEC

MPN5SY7204-7
Active

Siemens SENTRON 5SY7204-7 miniature circuit breaker, 2-pole, C characteristic, 15 kA (EN 60898) / 40 kA (IEC 60947-2), 400 V AC, IP20, 36 mm wide.

$39.37Ref. price · indicative, final on quote
Siemens 5SY7204-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY7204-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY7204-7 — Electrical
ParameterValue
Number of poles2
5SY7204-7 — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SY7204-7 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY7204-7 — Environmental
ParameterValue
Pollution degree3
5SY7204-7 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value15 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

Integrator note — 5SY7204-7

The Siemens 5SY7204-7 is a 2-pole SENTRON miniature circuit breaker with C-trip characteristic, rated 15 kA per EN 60898-1 and 40 kA per IEC 60947-2 at 400 V AC. DC rating holds at 15 kA per IEC 60947-2 up to 72 V, so it also covers control-circuit protection on 60 V DC buses.

Fastens via the quick-assembly system — snaps onto DIN rail, any mounting position. Terminal top and bottom are combined (same clamp accepts busbar or wire), which simplifies panel wiring when feeding a common bus.

Frequently asked questions

What is the difference between 5SY7204-7 and 5SY4140-7?

The 5SY4140-7 is a 1-pole breaker (single pole, 18 mm wide) versus the 2-pole 5SY7204-7 (36 mm wide). The 5SY7204-7 carries higher interrupting ratings — 40 kA per IEC 60947-2 vs the 5SY4140-7's lower rating — so it fits industrial distribution boards where fault current is higher. They share the same C characteristic and SENTRON platform, but the 2-pole version also switches both line conductors, while the single-pole does not switch neutral.

What compliance documentation does Siemens provide for 5SY7204-7?

The breaker is certified to IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA C22.2 No.235. It is halogen-free and silicon-free. Standard Siemens declarations of conformity (CE, UKCA) and the full datasheet are available with the product documentation package.

Where can I buy 5SY7204-7 and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution. Submit an RFQ with your target quantity and delivery window; availability and current pricing are confirmed at quote time.
