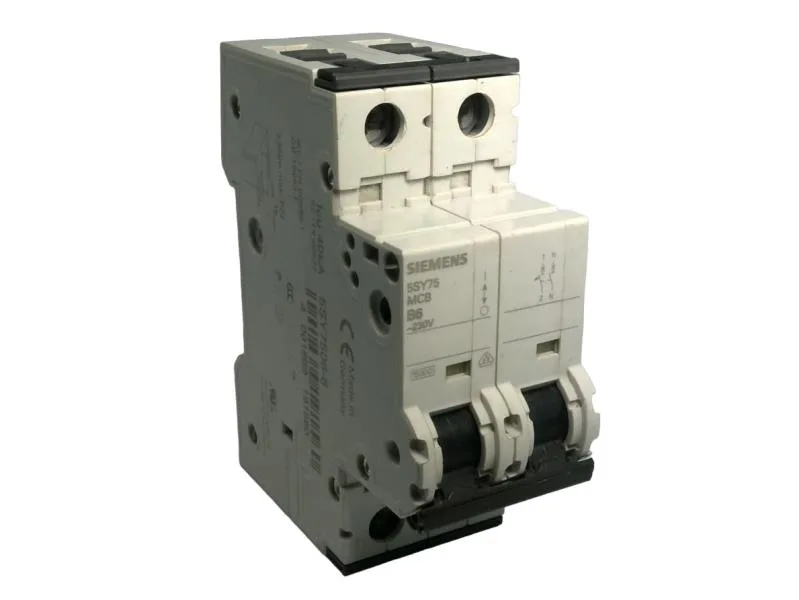

Siemens 5SY7506-6 — 1-Pole MCB (DIN Rail)

Siemens 5SY7506-6 SENTRON MCB, B-Curve 2-Pole 1P+N, 15/40 kA

MPN5SY7506-6
Active

Siemens SENTRON 5SY7506-6, miniature circuit breaker, B-curve, 2-pole (1P+N), 15 kA per EN 60898 / 40 kA per IEC 60947-2, 230 V AC, 2 MW units.

$20.32Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

5SY7506-6 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles2
Pole design1P+N
Application suitabilityMechanical engineering / industry
5SY7506-6 — Electrical & Protection
ParameterValue
Tripping characteristic classB
Energy limitation class3
Overvoltage categoryIII
5SY7506-6 — Mounting & Connection
ParameterValue
Mounting positionany
Fastening methodQuick assembly system
Combined terminal, topYes
Combined terminal, bottomYes
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Modular width units2
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SY7506-6 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree3
Halogen-freeYes
Silicone-freeYes

Product details

Siemens 5SY7506-6 — B-curve MCB with neutral switching

Breaking capacity is dual-rated: 15 kA per EN 60898 at 230 V AC, and 40 kA per IEC 60947-2 at the same voltage. For DC circuits, the interrupting rating is 15 kA at 60 V (max 72 V).

IP20 with connected conductors is the standard open-panel rating — no additional enclosure seal needed for the breaker itself.

Environmental and mounting notes

Rated for ambient temperatures from -40 °C to +75 °C, with derating above 55 °C per the humidity curve (max 95% RH at 55 °C, tapering to 35% at 75 °C). The quick-assembly fastening system and sealable design (padlockable toggle) allow the panel builder to lock the breaker in the OFF position for lockout/tagout compliance without additional accessories.

Frequently asked questions

What breaking capacity does the 5SY7506-6 have?

15 kA per EN 60898 at 230 V AC, and 40 kA per IEC 60947-2 at the same voltage. For DC circuits it is rated 15 kA at 60 V (max 72 V).

Will the 5SY7506-6 drop into a panel specified around the 5SY4116-7CV?

Both are 2-module-width SENTRON MCBs on the same DIN-rail footprint, so the mechanical fit is identical. The deciding factor is the tripping curve and breaking capacity — the 5SY7506-6 is a B-curve device; verify that the original panel's selectivity study was written for B-curve rather than C- or D-curve before substituting.

Where can I buy the 5SY7506-6 and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your volume and delivery window.

MPN
5SY7506-6
