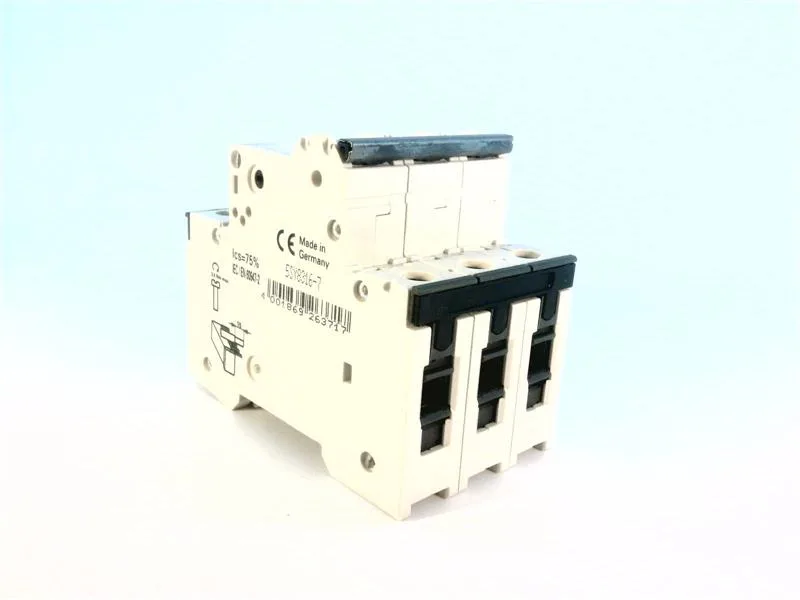

Siemens 5SY8316-7 — 3-Pole MCB (DIN Rail)

Siemens 5SY8316-7 SENTRON MCB, 3P C-Curve, 30kA IEC

MPN5SY8316-7
Active

Siemens SENTRON, miniature circuit breaker, 3-pole, C characteristic, 30 kA at 400 V AC per IEC 60947-2, UL 1077, 3 MW, 76 x 54 x 90 mm.

$53.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY8316-7 — Identification
ParameterValue
Brand nameSENTRON
Number of poles3
Pole configuration3P
Suitability for operationMechanical engineering / industry
5SY8316-7 — Protection
ParameterValue
Tripping characteristic (curve)C
Breaking capacity per IEC 60947-230 kA
Overvoltage categoryIII
IP protection classIP20, with connected conductors
Pollution degree3
5SY8316-7 — Electrical
ParameterValue
Rated voltage (AC, multi-phase)440 V
Voltage type (AC/DC)AC
Supply frequency range50/60 Hz
Power loss per pole at rated current (AC, hot)1.6 W
Mechanical service life (operating cycles, typ.)10 000
Neutral conductor switchingNo
Rated voltage (AC, single-phase)440 V
5SY8316-7 — Mechanical
ParameterValue
Modular width units3
Mounting positionany
Width54 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Terminal tightening torque, max.75 °C
Terminal tightening torque, min.-40 °C
Combined terminal, topYes
Combined terminal, bottomYes
Fastening methodQuick assembly system
SealableYes
Accepts supplementary devicesYes
5SY8316-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
Vibration resistance (IEC 60068-2-6)±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz

Product details

That dual-standard stamp means it's accepted in panels destined for European and North American lines alike — one part number for a global BOM, no need to swap breakers at the shipping dock. It's a C-curve device, so it handles moderate inrush without nuisance tripping — think motor starters, small transformers, or banks of LED drivers on a conveyor line. The 30 kA interrupting rating at 400 V AC gives you headroom for high-fault panels; the DC side is rated 15 kA at 60 V, fine for control bus protection in the same cabinet. With IP20 once conductors are connected, it's for inside the enclosure — not out on the washdown floor.

The UL 1077 supplementary-protector rating at 5 kA is a different standard (lower fault current, typically used downstream of a branch-circuit OCPD), but having both means the same part passes inspection in Chicago or Frankfurt. Three poles switch all three phases. No neutral pole. Vibration resistance tested to IEC 60068-2-6: ±1 mm at 5 to 25 Hz, 50 m/s² at 25 to 150 Hz. That's enough for most industrial machinery — pumps, compressors, conveyors on the plant floor. Not a marine or rail shock spec, but solid for a fixed panel in a factory.

Frequently asked questions

What compliance documentation does this breaker carry?

It's certified to IEC / EN 60947-2 and UL 1077. Halogen-free and silicon-free construction. The operating temperature range is -40 °C to 75 °C. Pollution degree 3, overvoltage category III.
