The Siemens 5TT3801 is a load remote switch rated for 24 A contact current, with four normally open poles. Control voltage accepts 230 V AC or 220 V DC, making it a straight swap into existing 230 V AC control circuits or 220 V DC battery-backed systems. The 4 NO configuration means it breaks all four poles simultaneously — no auxiliary contacts for status feedback built in.

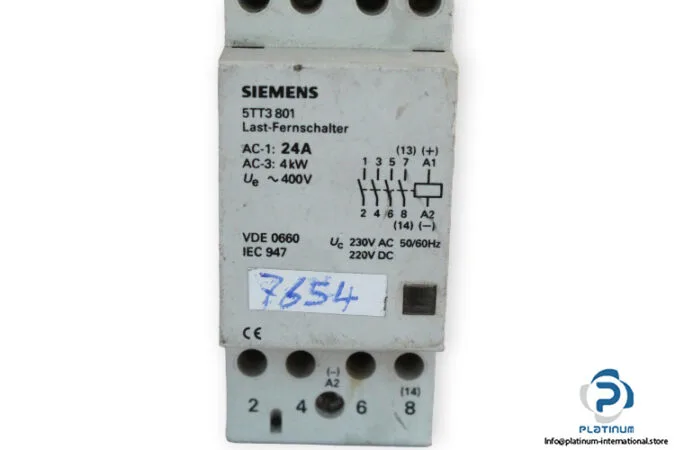

Siemens 5TT3801 Load Remote Switch, 24 A, 4 NO, 230 V AC/220
MPN5TT3801
Siemens 5TT3801 Load Remote Switch, 24 A contact current, 4 normally open, control 230 V AC / 220 V DC.
$30.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Load Remote Switch |
| Model | 5TT3801 |
| Weight | 0,28 kg |
| Condition | Used |
| Frequency | 50 … 60 Hz |
| Shelf no. | 231122 |
| Contact current | 24 A |
| Type of product | Load Remote Switch |
| Power consumption | 4 kW |
| Contact configuration | 4 Normally open |
| Control circuit voltage | 230 V AC/ 220 V DC |
Product details
Frequently asked questions
What is the contact configuration and rating?
Four normally open contacts, each rated at 24 A. Control voltage is 230 V AC or 220 V DC.
What type of product is the 5TT3801?
It is a load remote switch, used to remotely switch power to loads in industrial control panels.
