Siemens 6AG1055-1FB00-2XB1 — PLCs (Programmable Logic Controllers)

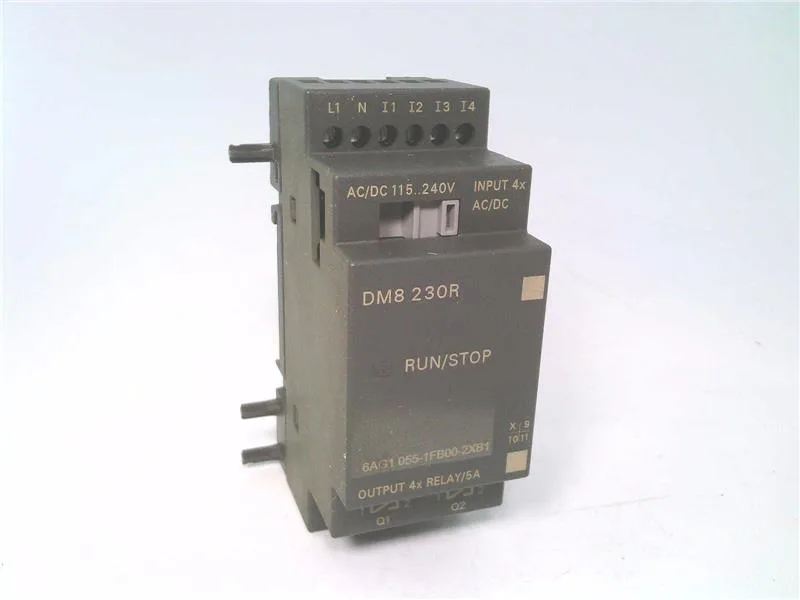

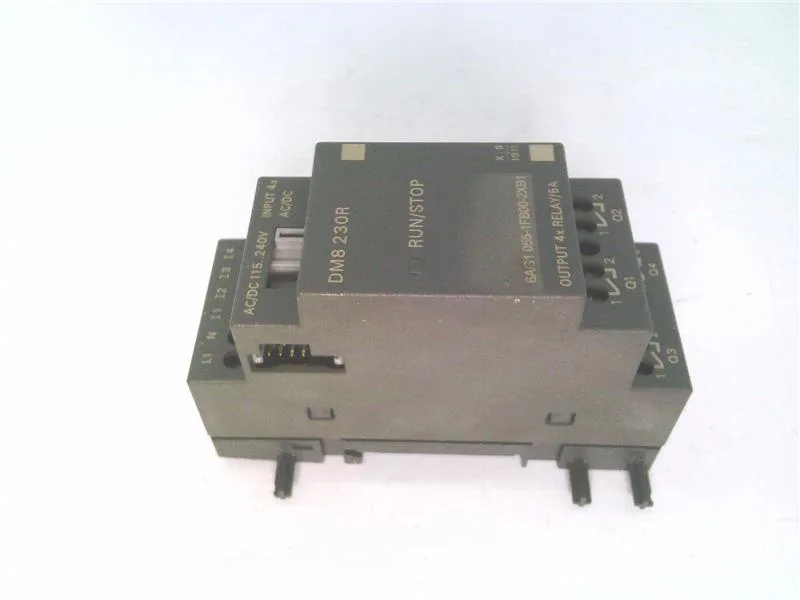

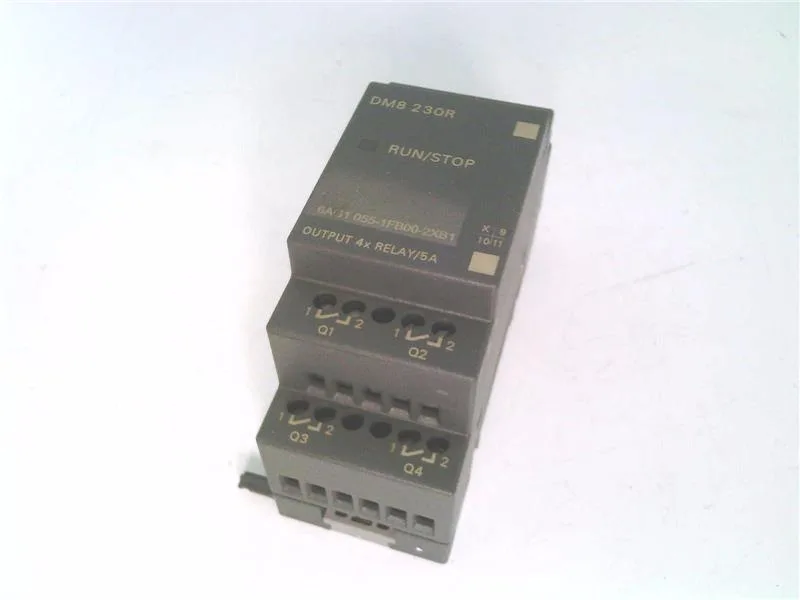

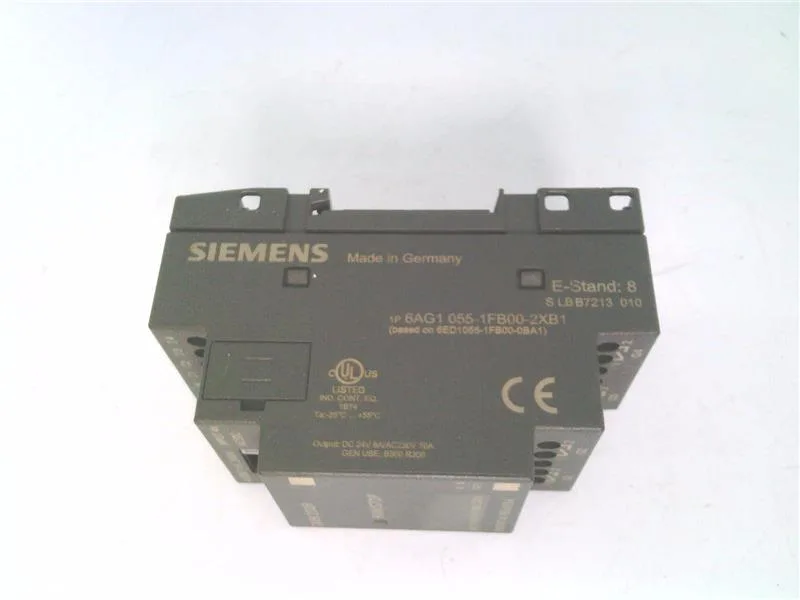

Siemens 6AG1055-1FB00-2XB1 SIPLUS LOGO! DM8 230R, -25..70°C

MPN6AG1055-1FB00-2XB1

Siemens SIPLUS LOGO! DM8 230R, 4 digital inputs, 4 relay outputs, AC/DC 115-230V, -25 to 70°C, 36 mm (2 DU) on DIN rail.

$166.37Ref. price · indicative, final on quote
Siemens 6AG1055-1FB00-2XB1 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6AG1055-1FB00-2XB1 — I/O
ParameterValue
Digital inputs4
Digital outputs4; Relays
6AG1055-1FB00-2XB1 — Electrical
ParameterValue
Permissible range, lower limit (DC)100 V
Permissible range, upper limit (DC)253 V
Short-circuit protectionNo
6AG1055-1FB00-2XB1 — Environmental
ParameterValue
Temperature, min.-25 °C; = Tmin
Temperature, max.70 °C; = Tmax; 55 °C @ UL/cUL use
Ambient temperature vs. altitude/pressure deratingTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)
6AG1055-1FB00-2XB1 — Mechanical
ParameterValue
Width36 mm; 2 DU
Height90 mm
Depth55 mm

Product details

vs the 8-input sibling

The 6ED1052-1FB00-0BA6 is an 8-input module with a display and 72 mm width (4 DU). This one is half the width, no display, half the inputs. IO count is different, footprint is different. Don't try to swap one for the other without checking the wiring schedule; the base module and terminal assignments don't match. If the BOM calls for the 6AG1055-1FB00-2XB1, that's what goes in.

Sourcing

This one is a spare part, quoted to order. Drop an RFQ and we'll get it lined up—no backorder drama on a current line.

Frequently asked questions

What is the maximum operating temperature?

The maximum ambient temperature is 70 °C; however, for UL/cUL applications it is derated to 55 °C as per UL file E120869.
